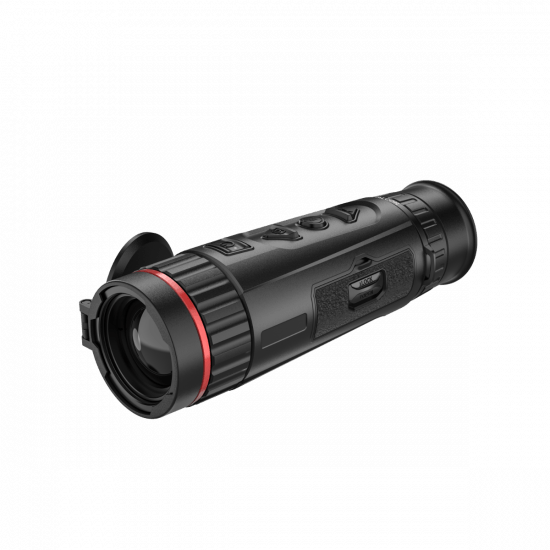

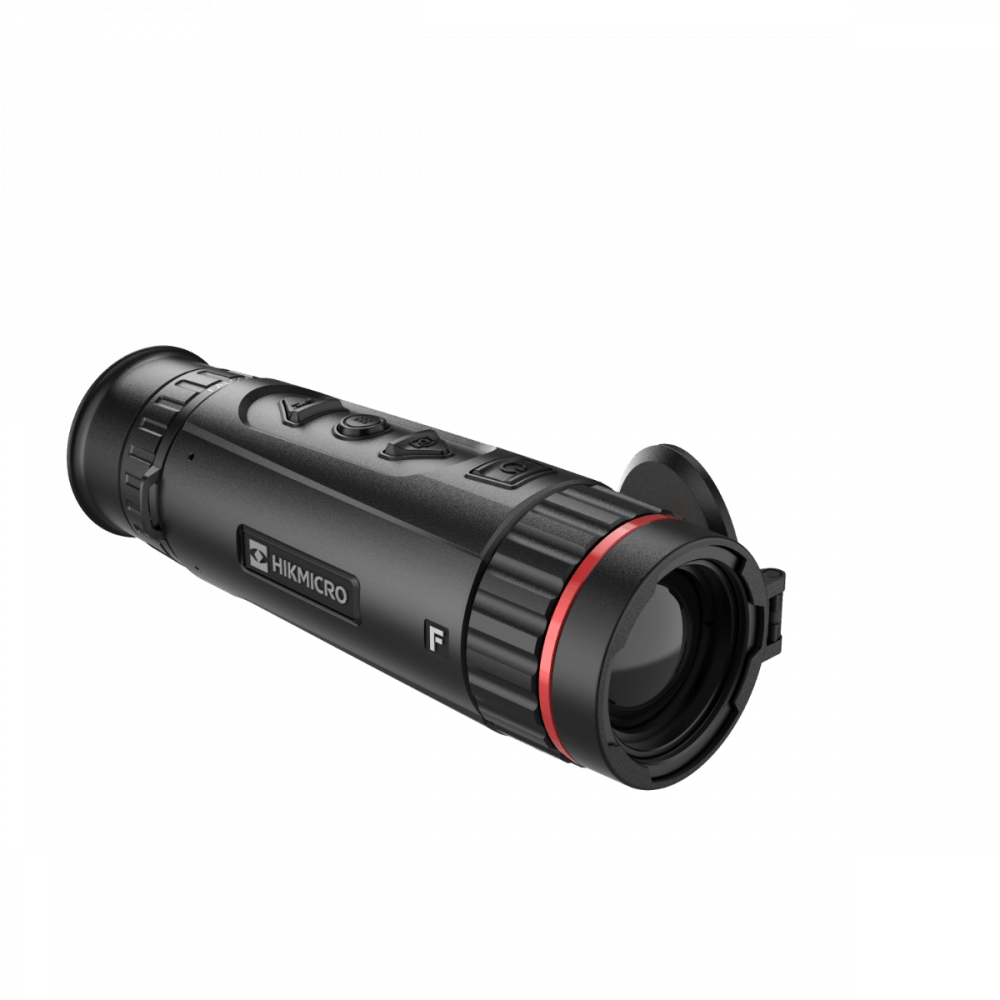

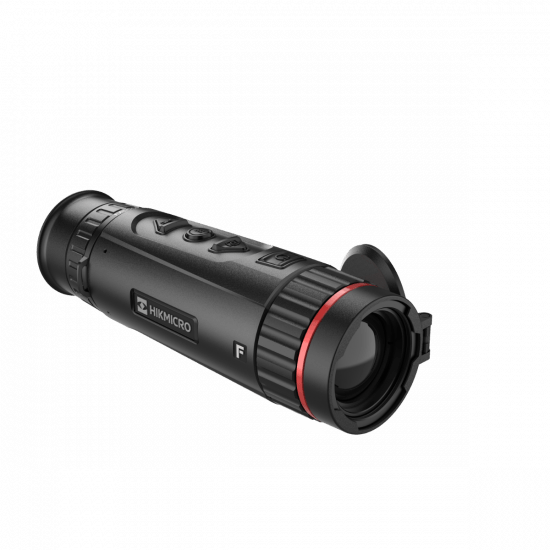

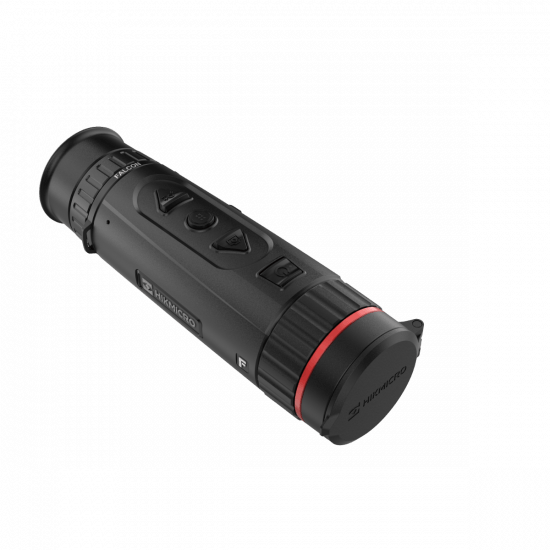

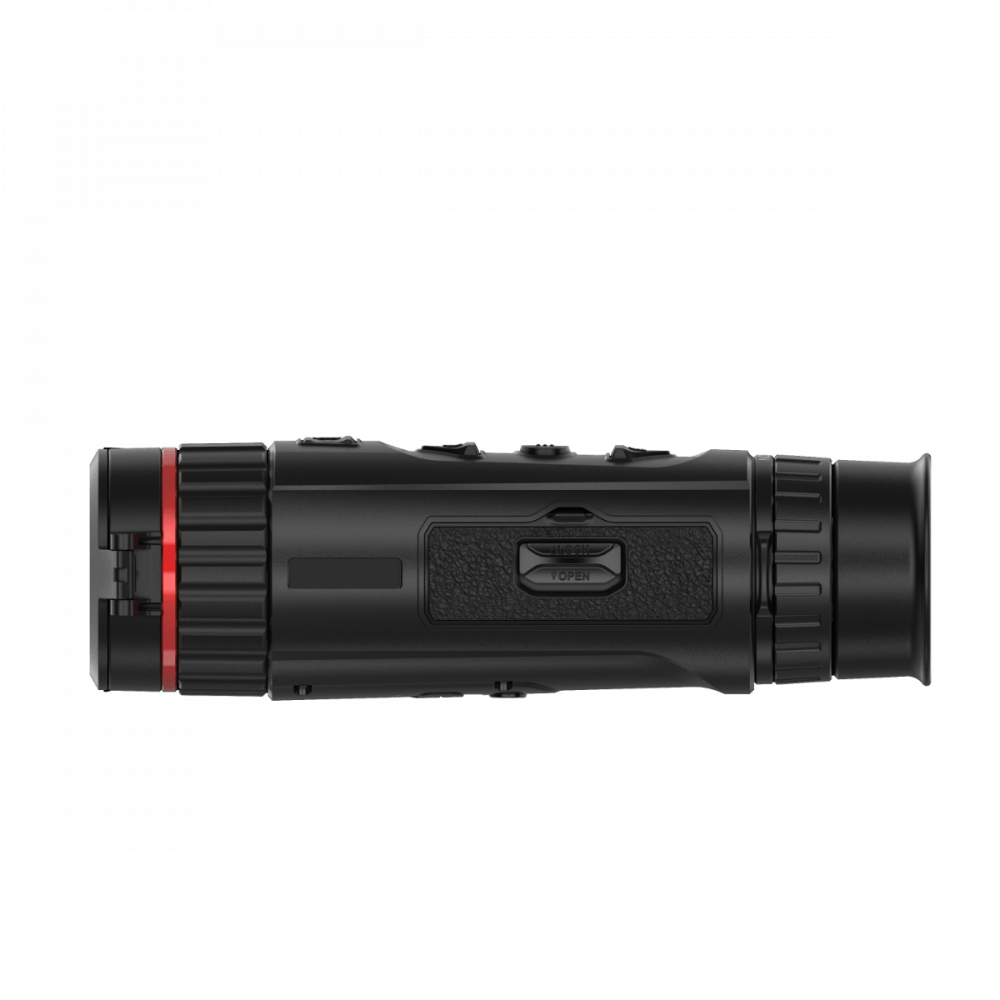

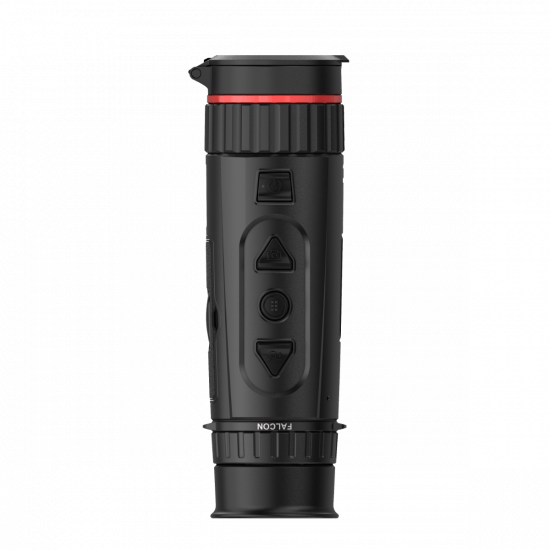

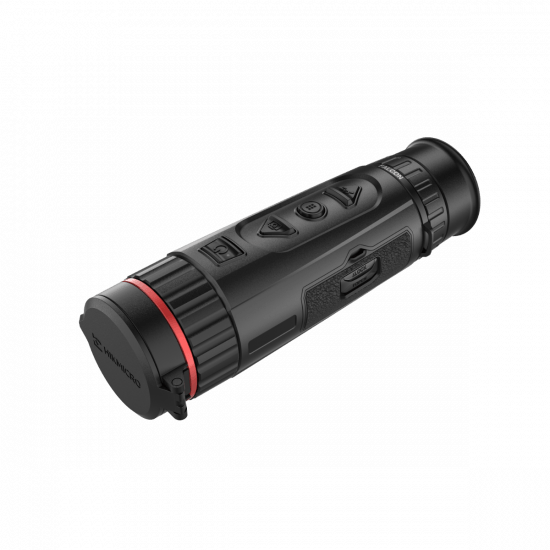

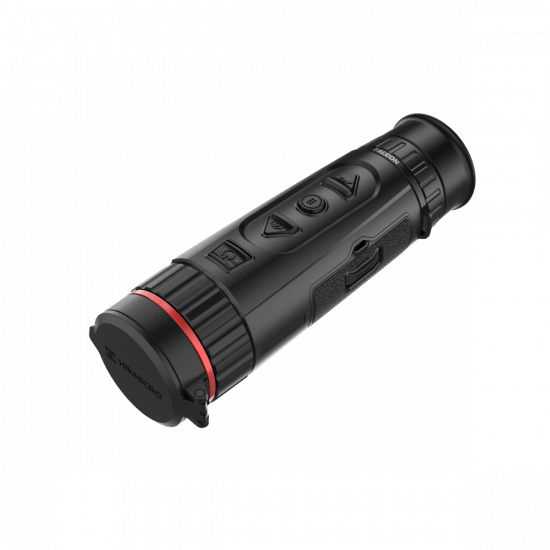

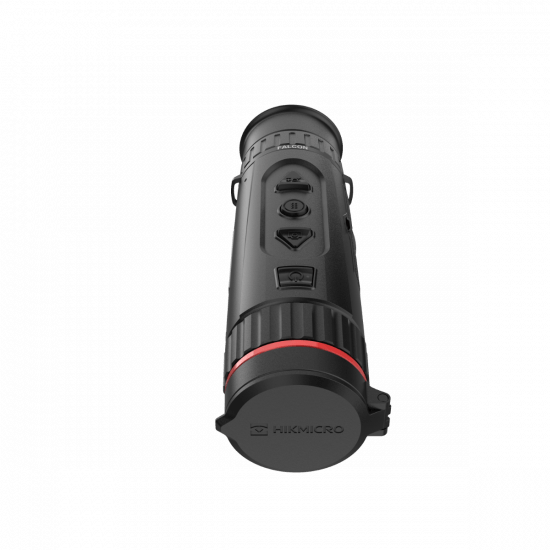

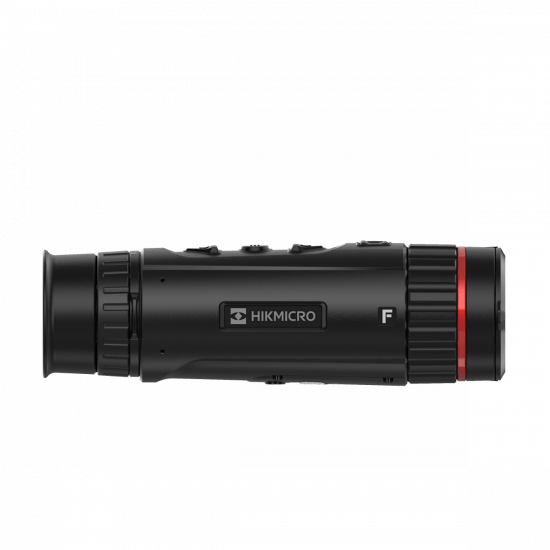

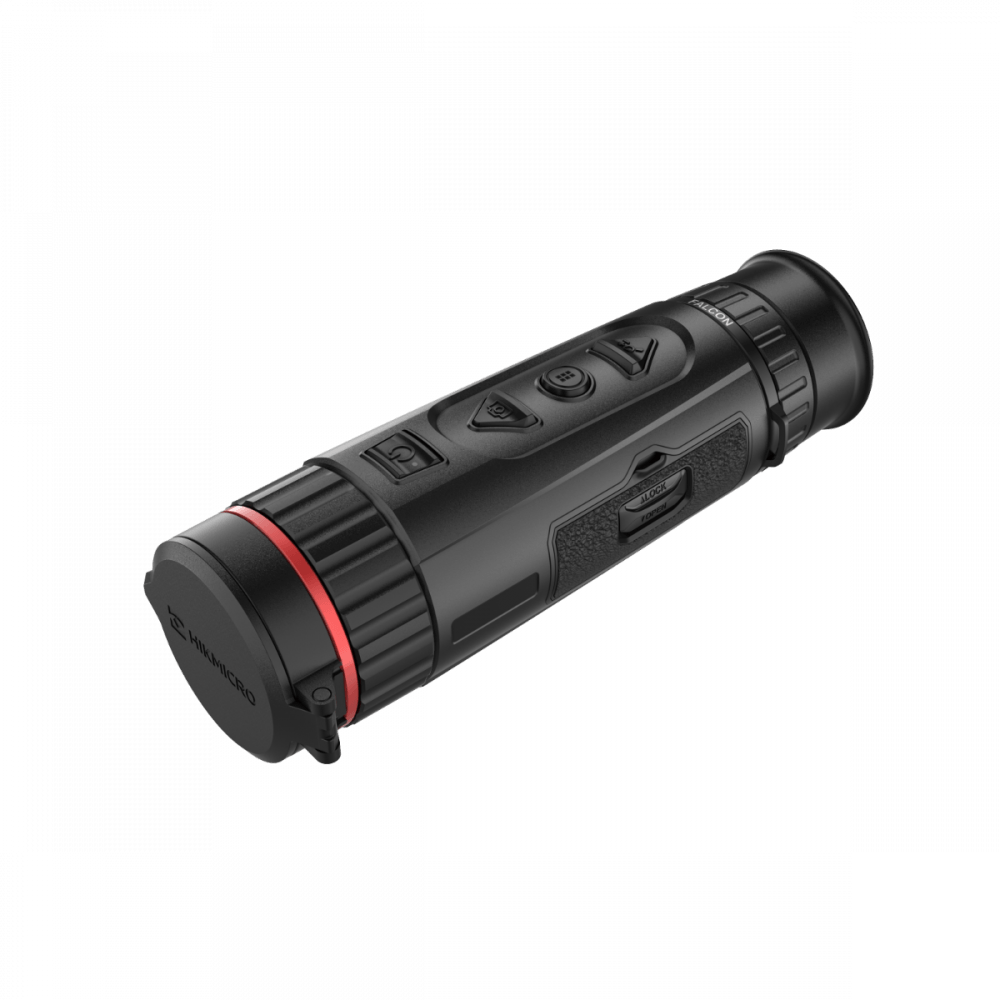

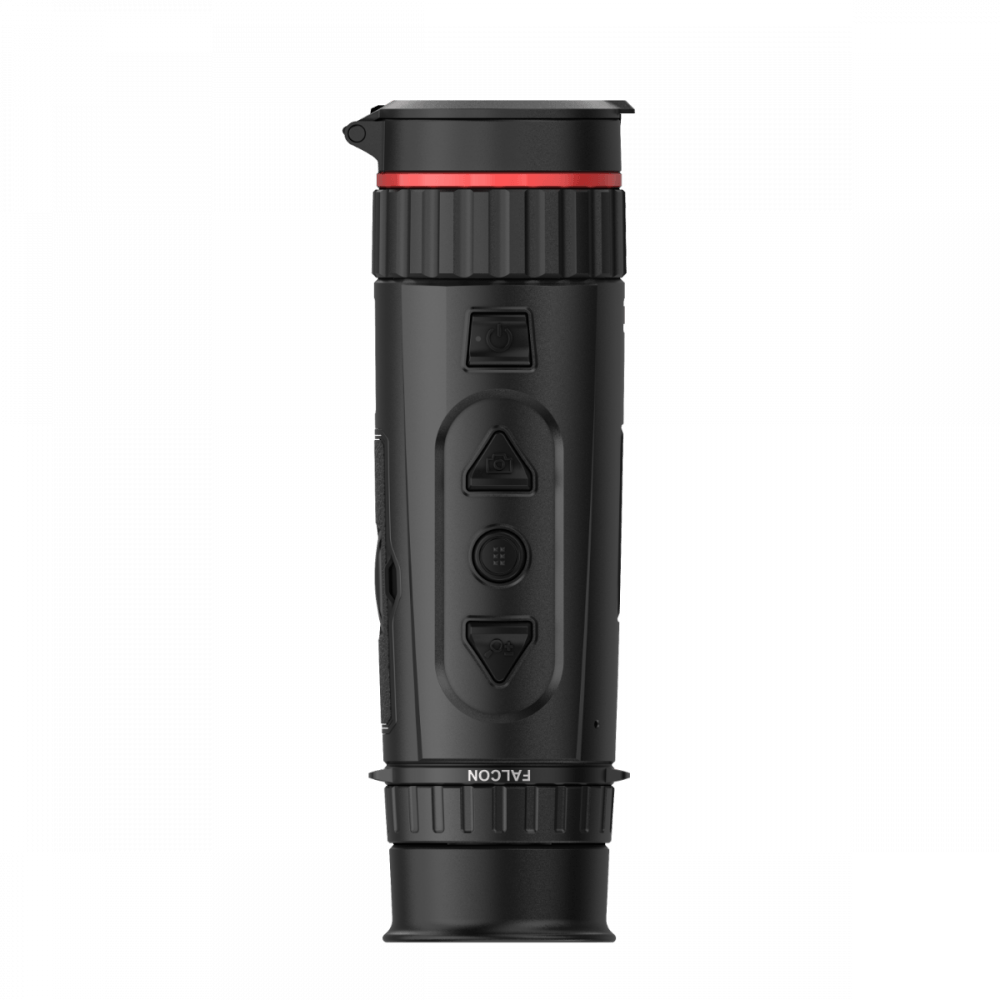

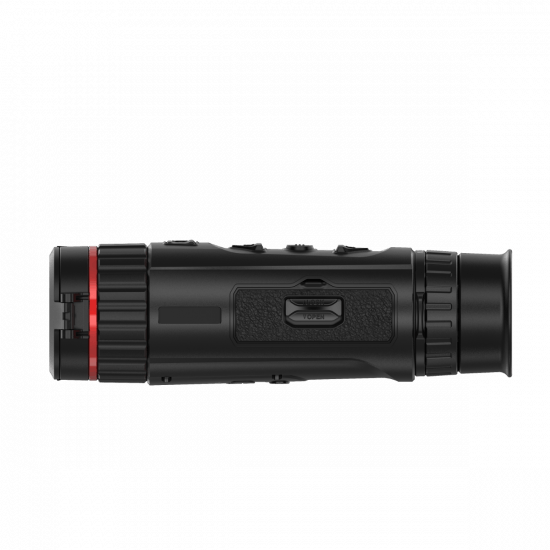

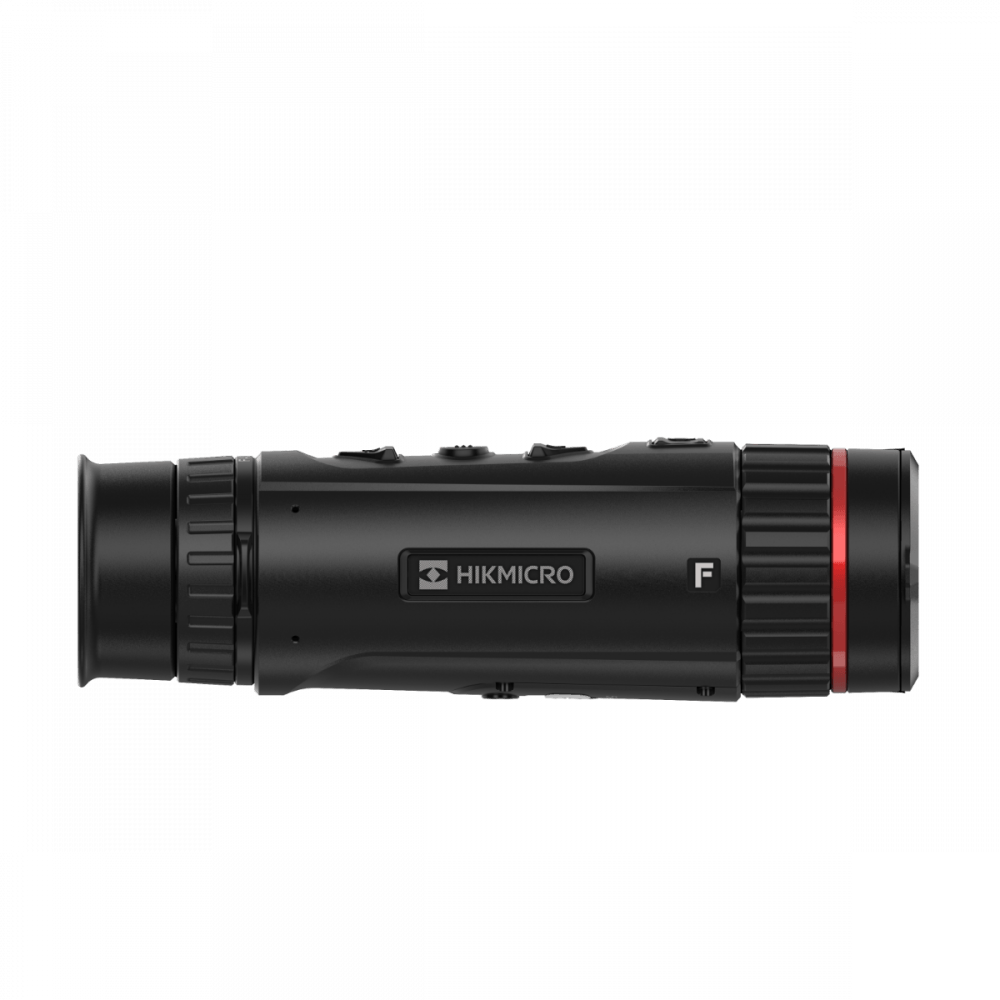

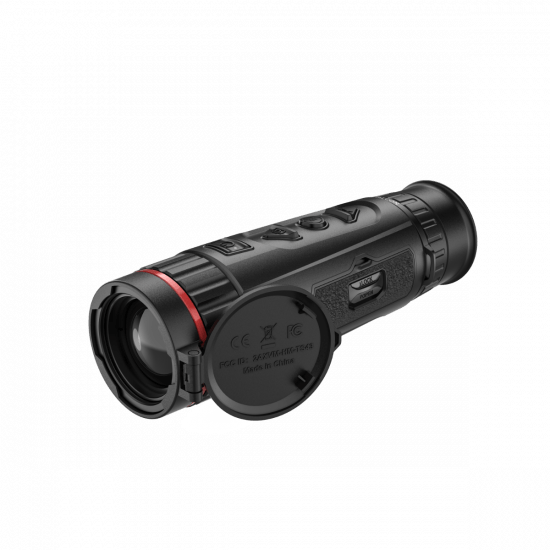

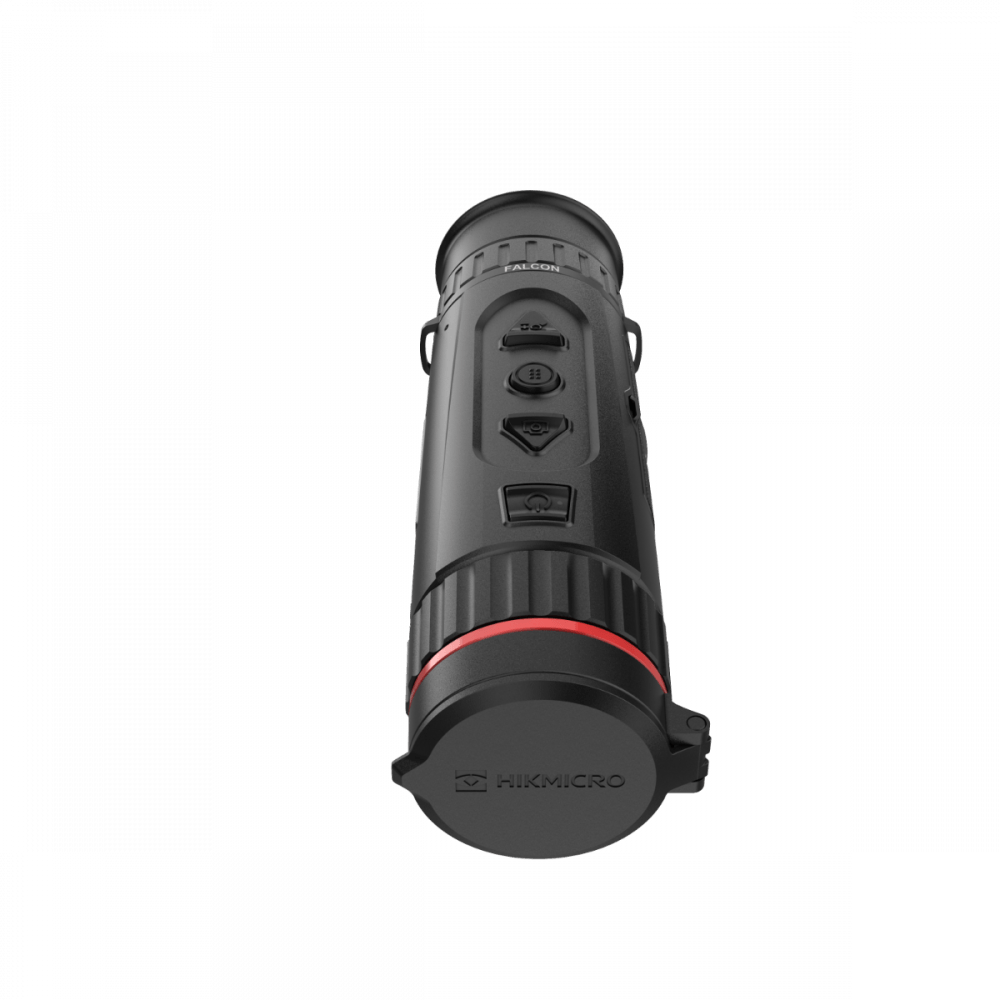

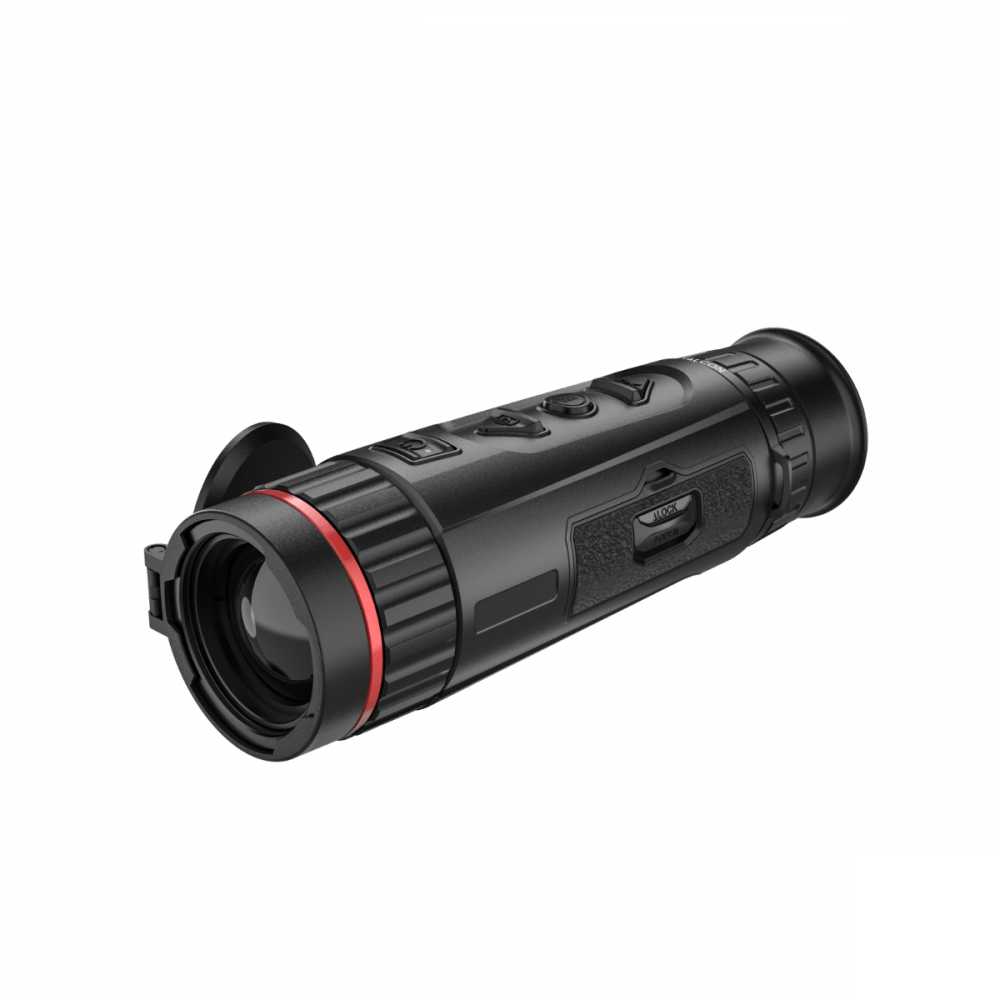

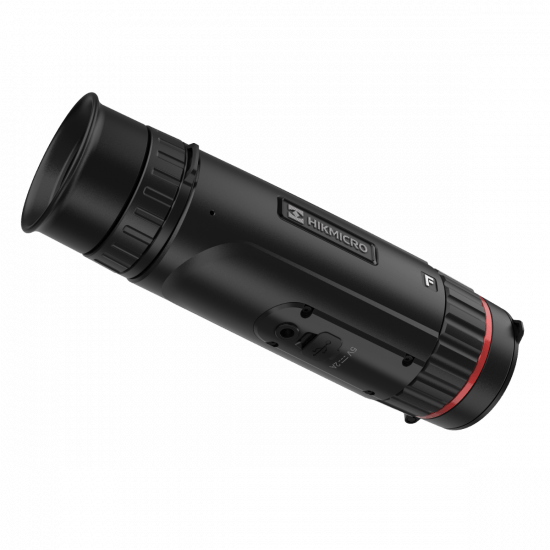

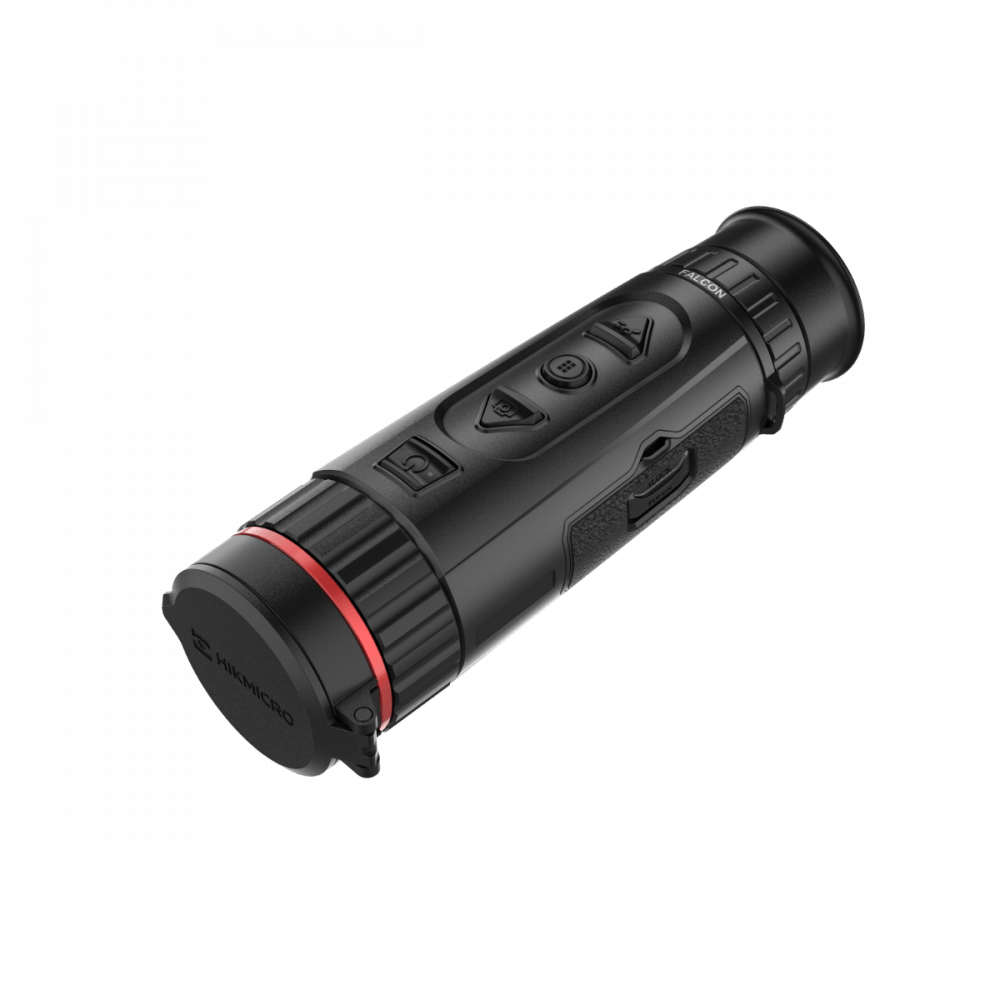

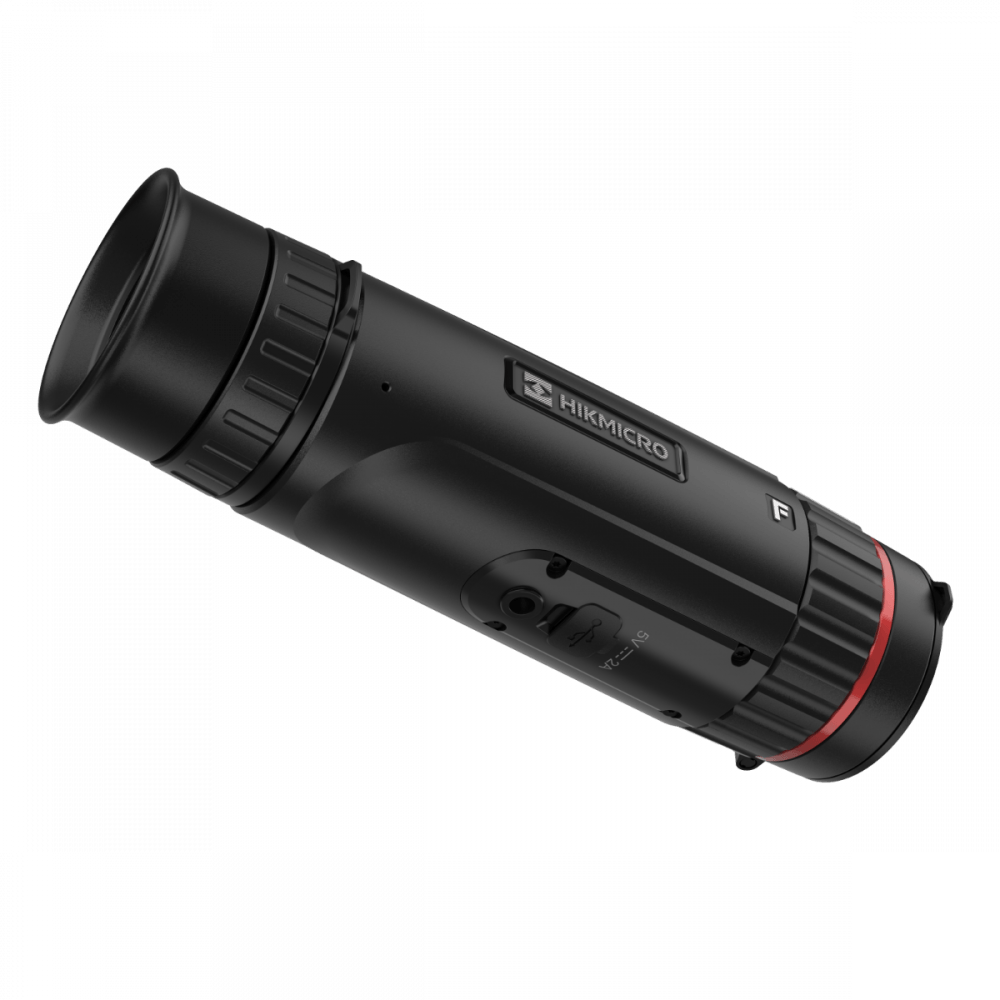

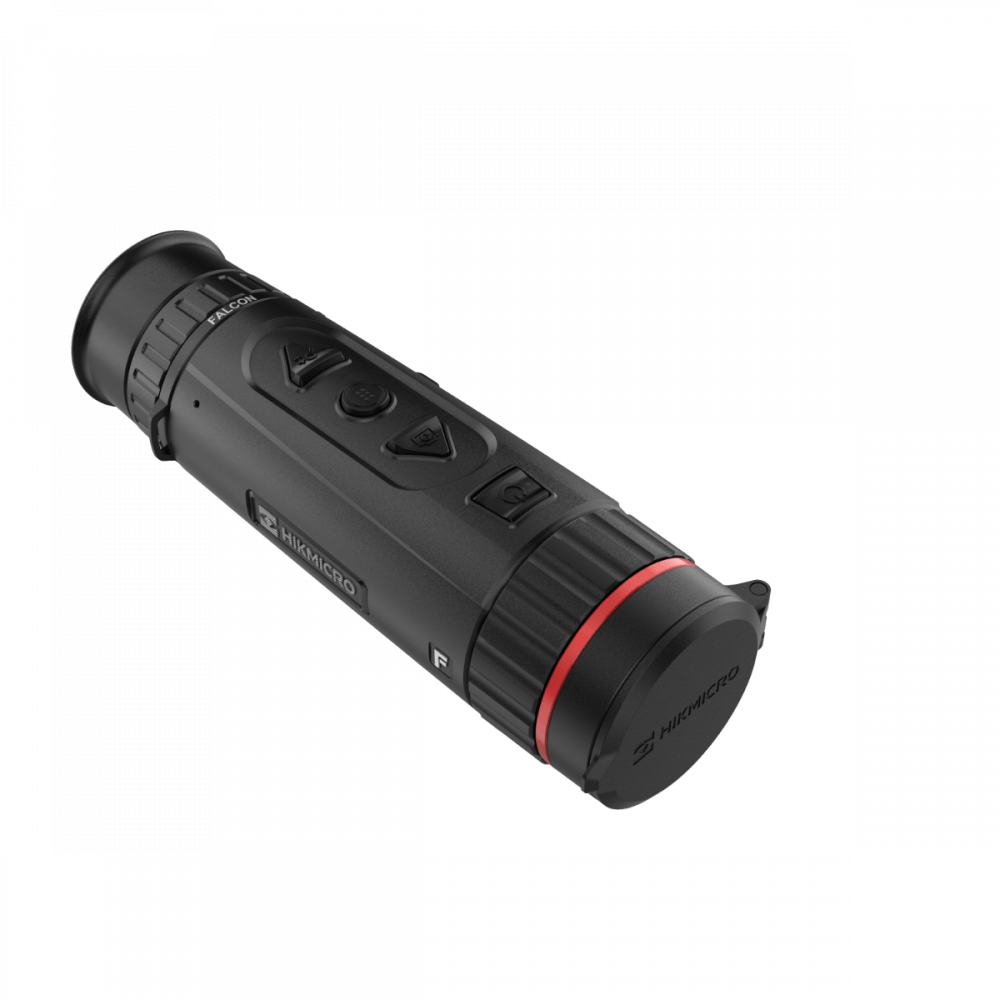

HIKMICRO Falcon FH35 Thermal Monocular

The HIKMICRO FALCON FH35 portable thermal monocular camera is equipped with an infrared sensor with a resolution of 384 x 288 pixels and a 1024 x 768 pixel OLED display.

The high-sensitivity integrated thermal detector provides a clear view even in total darkness.

The monocular is mainly used in scenarios such as search and rescue, hiking, travel, and hunting, etc.

Main Features

Resolution of 384 x 288 pixels with a 12µm sensor

High-sensitivity thermal module NETD<20 mK [@25°C, F#=0]

Replaceable and rechargeable Li-ion battery

Up to 7 hours of continuous operation

Advanced thermal image processing technology: Image Pro

Resolution of 1024 x 768 pixels 0.39-inch OLED display

Thermal Sensor

Sensor: Uncooled Focal Plane Arrays

Resolution: 384 x 288

Frequency: 50 Hz

Pixel interval: 12 µm

NETD: >20 mK (@25°C, F# = 1.0)

Focal length: 35mm

Aperture: F1.0

Min. focusing distance: 3.5 m

Digital zoom: 1x, 2x, 4x, 8x

Optical magnification: 3.03

Field of view: 7.53° x 5.65° / 13.2m x 9.9m

Detection range: 1800 m

Image Display

Monitor: 0.39 inches, OLED, 1024 x 768

Palettes: Black hot, White hot, Red hot, Fusion

Flat field correction: Automatic, Manual, External correction

System

Storage: Built-in memory module (64 GB)

Video recording: Yes

Photo capture: Yes

Standby mode: Yes

Power

Power: 5V, 1.75W

Battery type: Replaceable and rechargeable Li-ion battery

Battery life: 7 hours of continuous operation with CVBS function and hotspot disabled (@25°C)

General

Operating temperature: -30°C to 55°C, Humidity: 90% or less

Protection rating: IP67

Dimensions: 187.7 mm x 58.3 mm x 65.2 mm (7.39" x 2.29" x 2.57")

Weight: 505g
