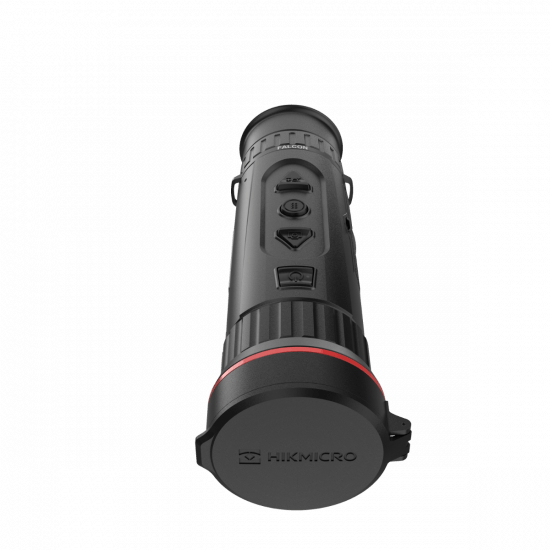

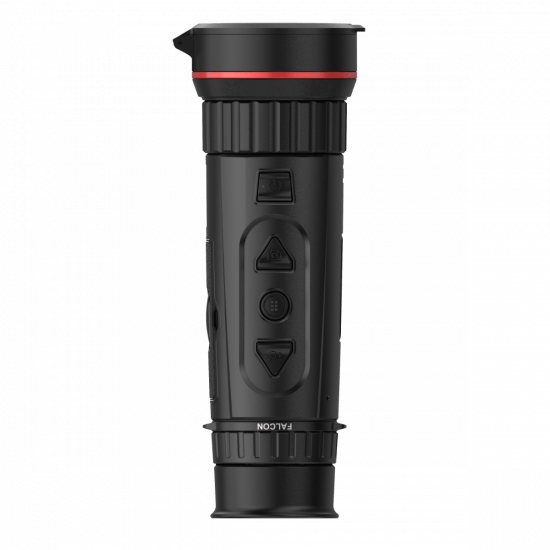

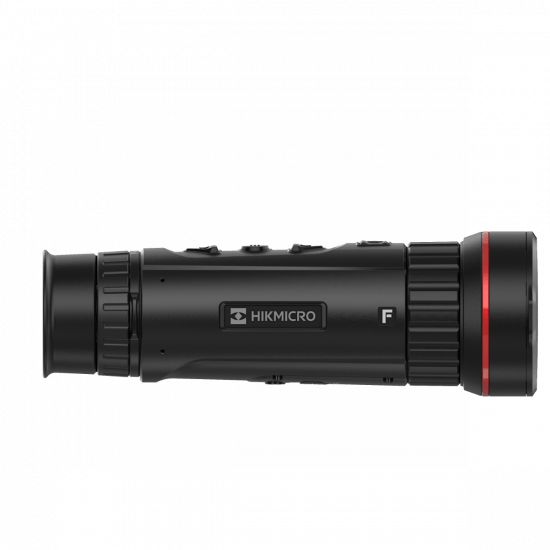

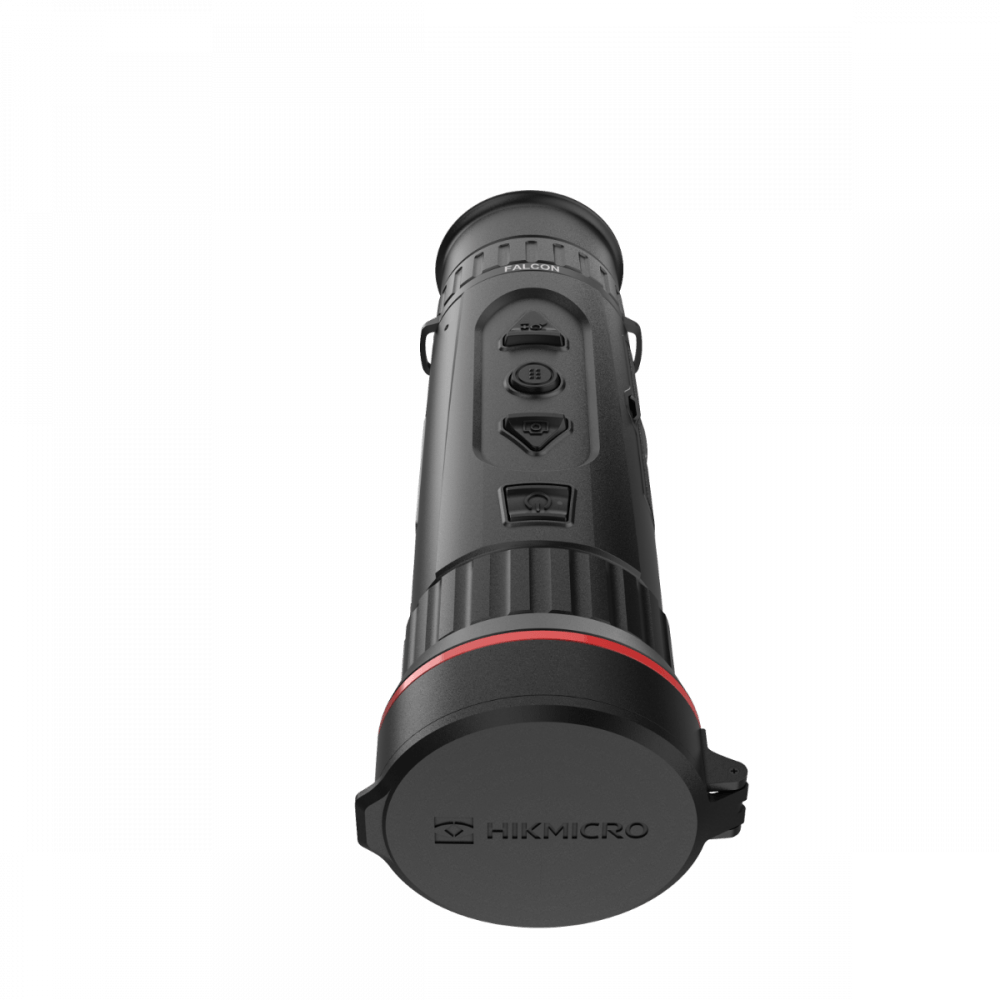

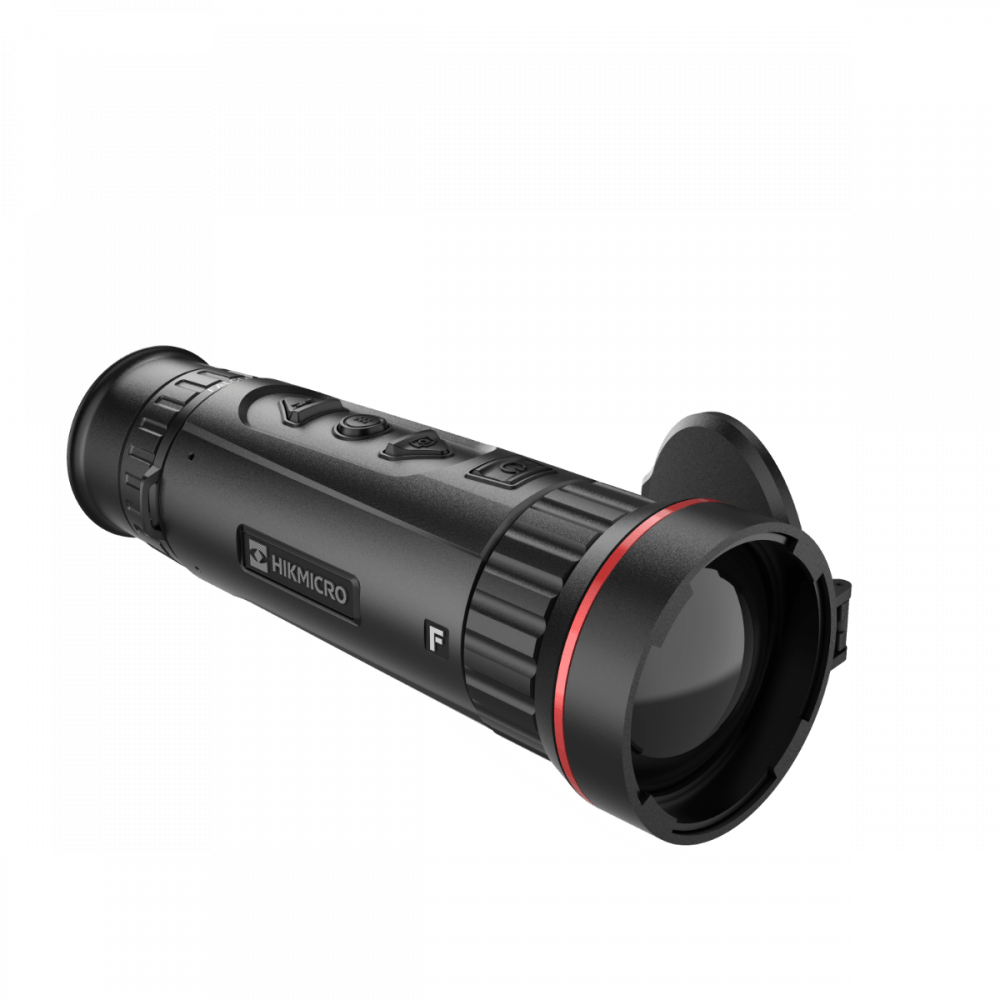

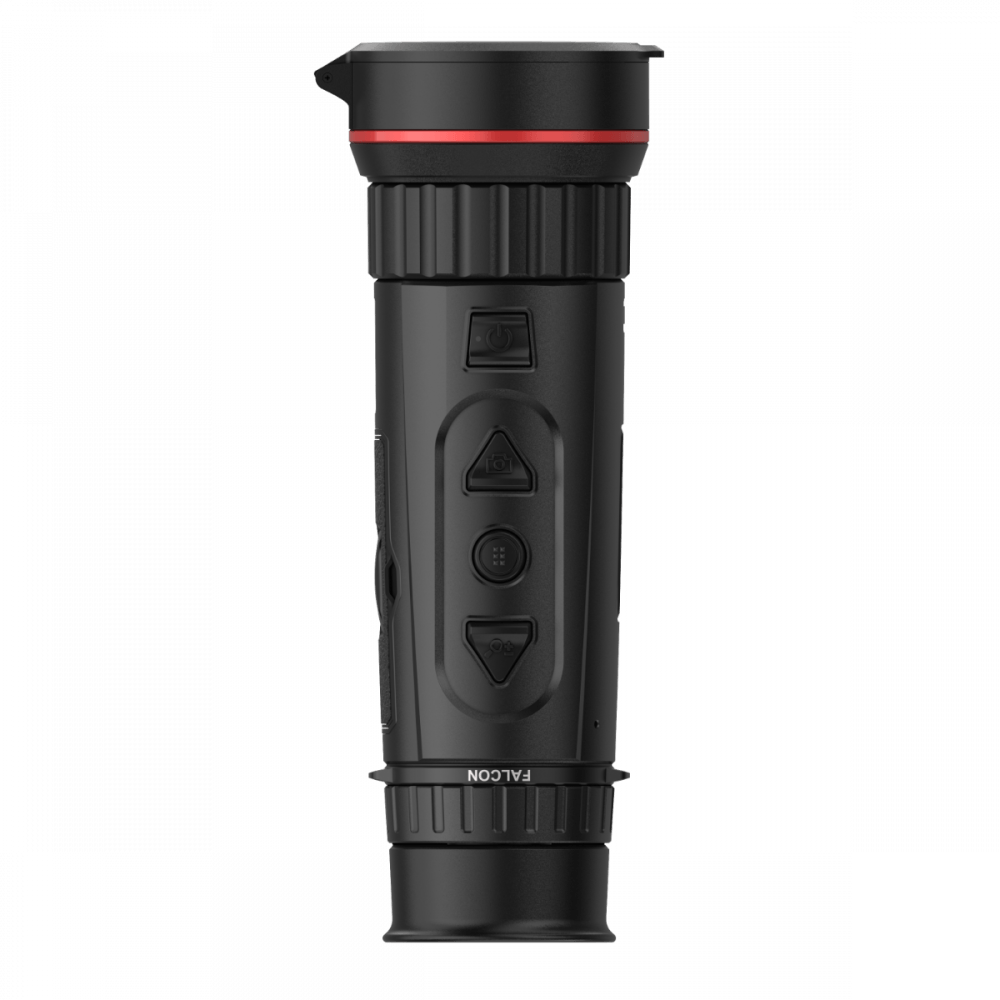

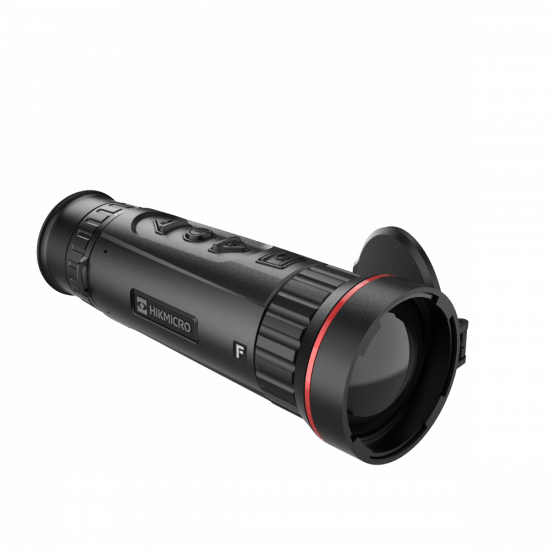

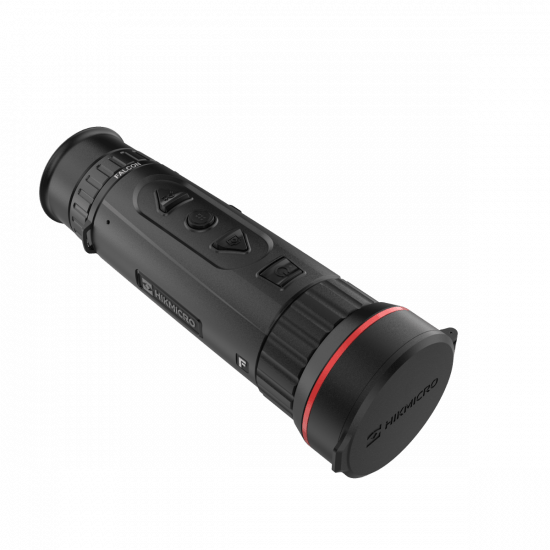

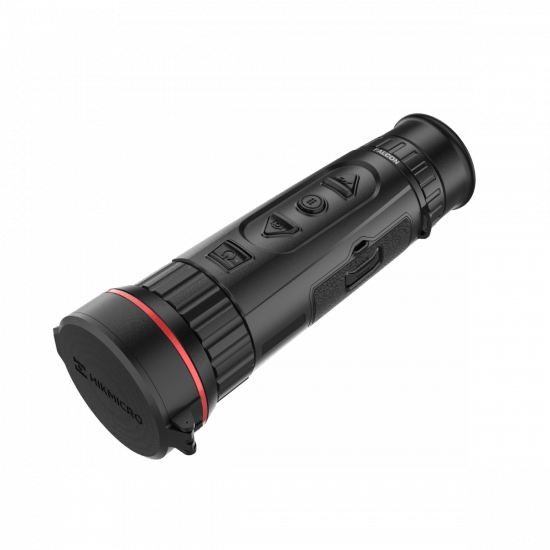

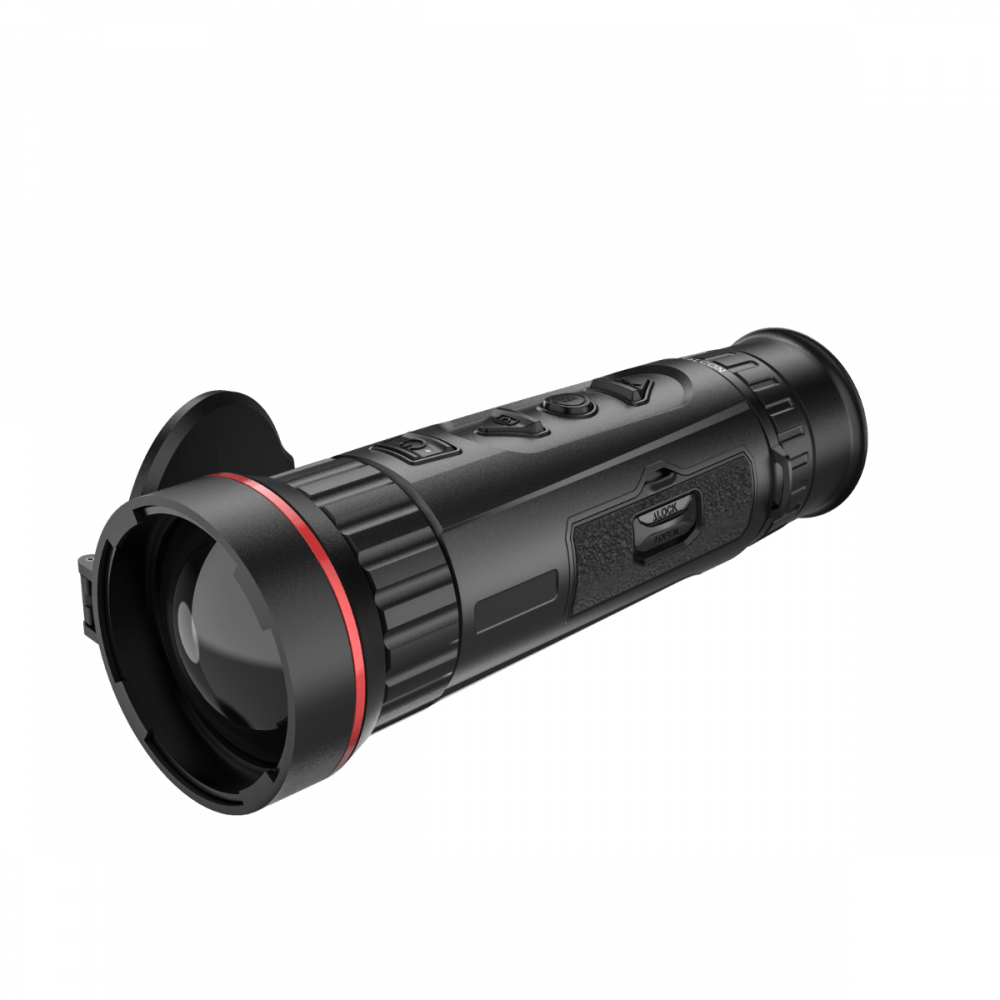

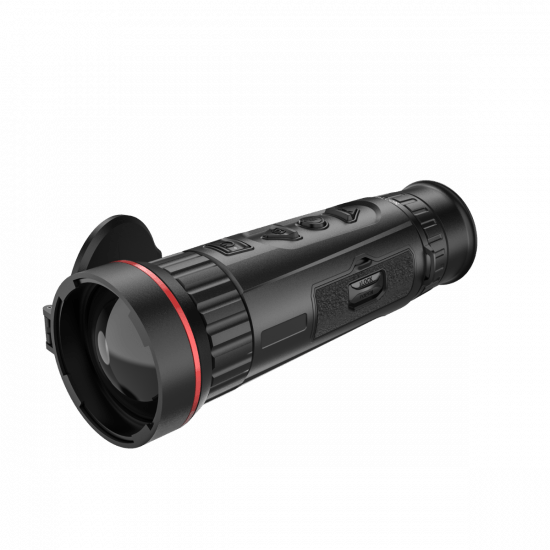

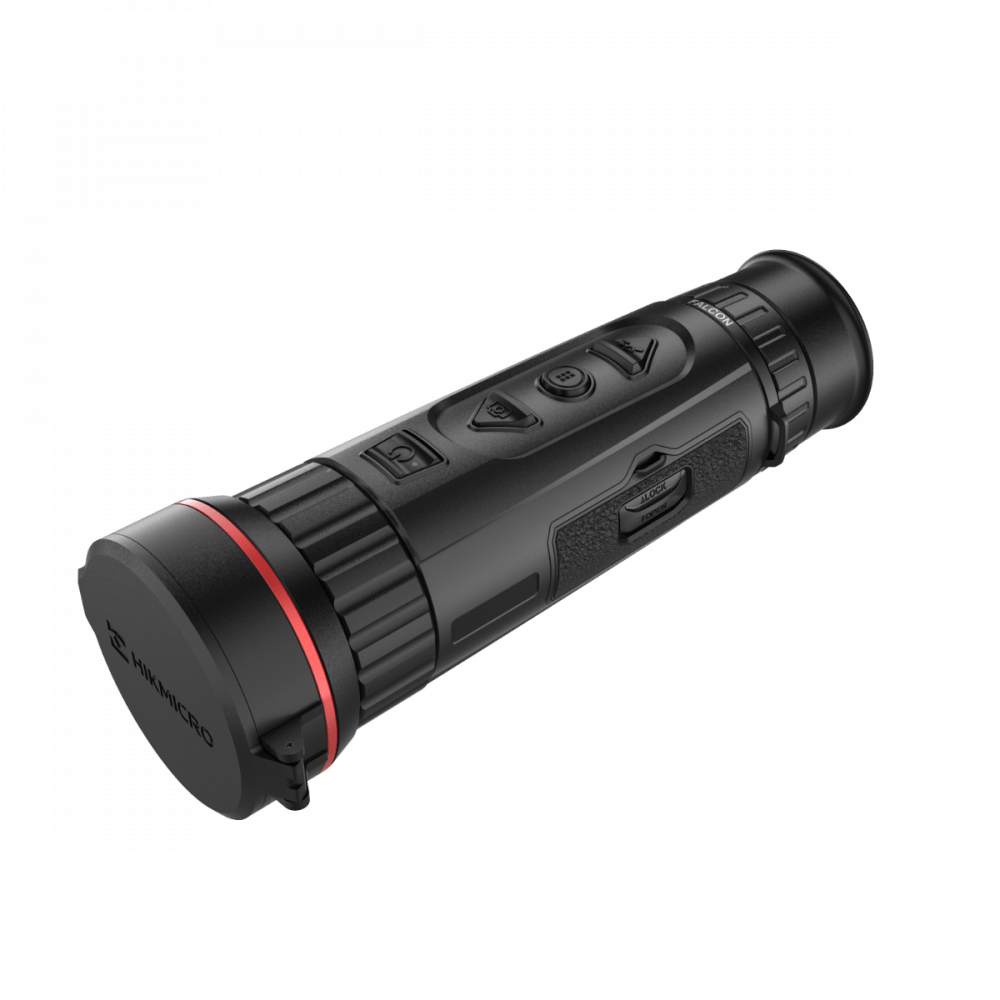

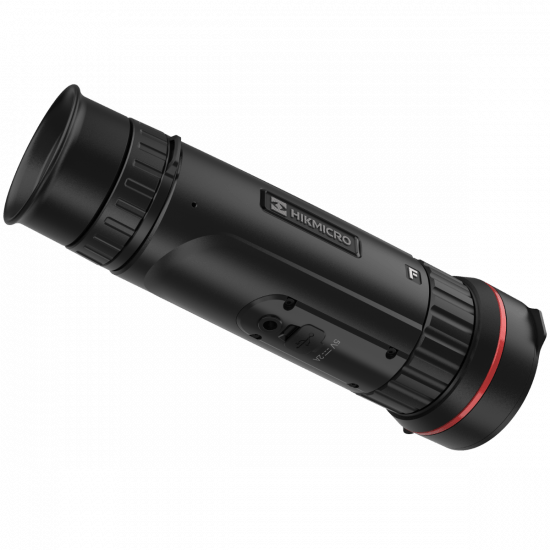

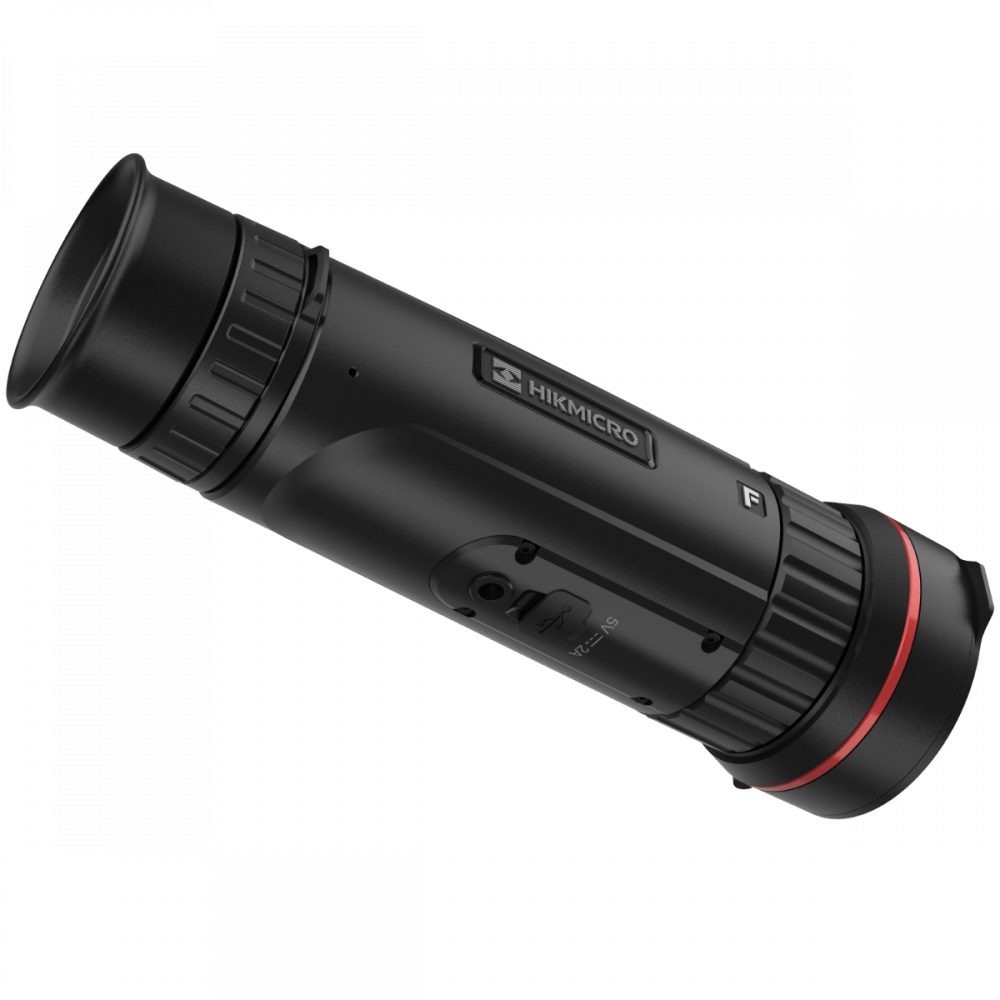

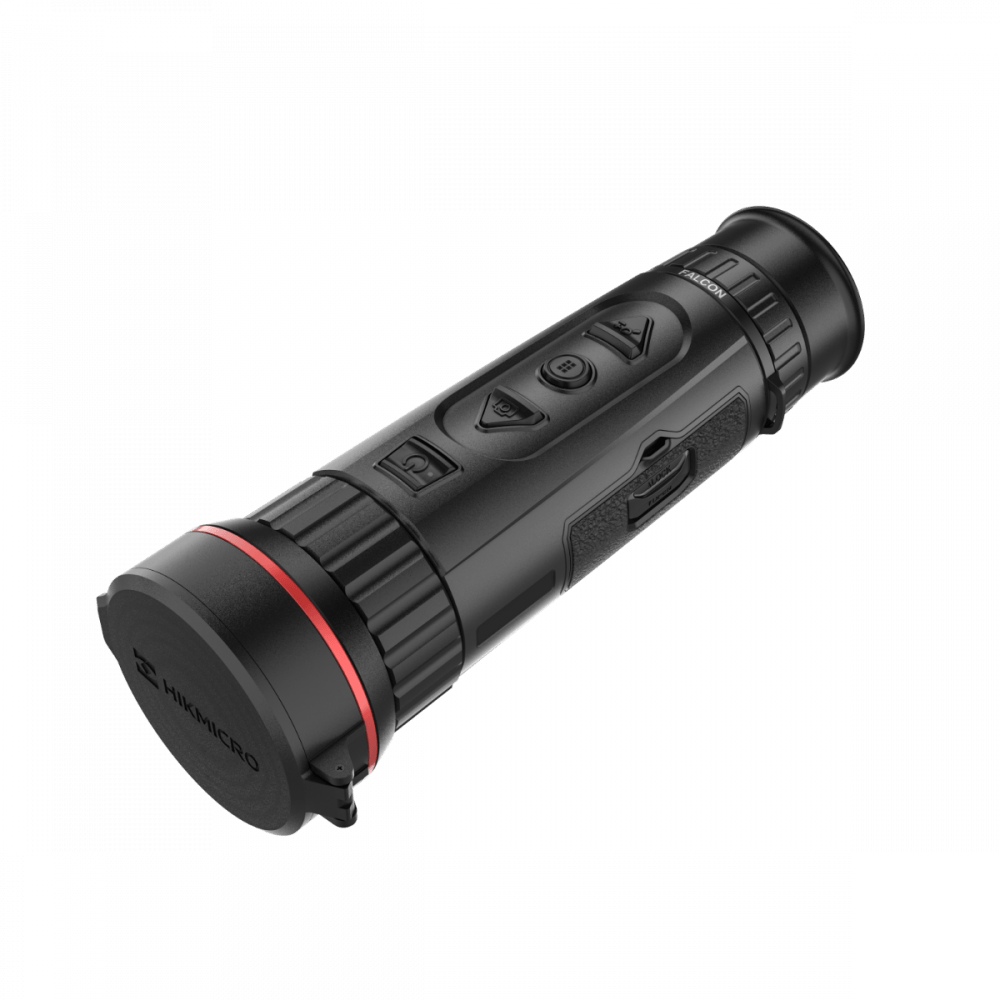

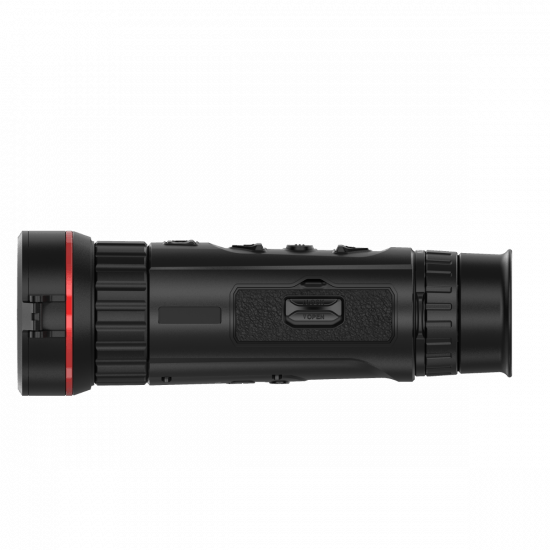

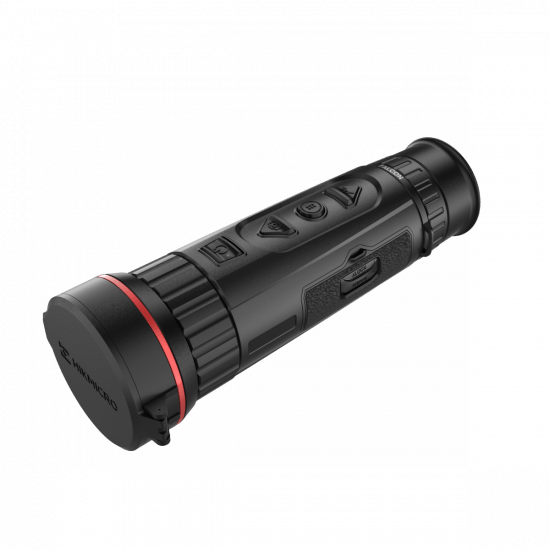

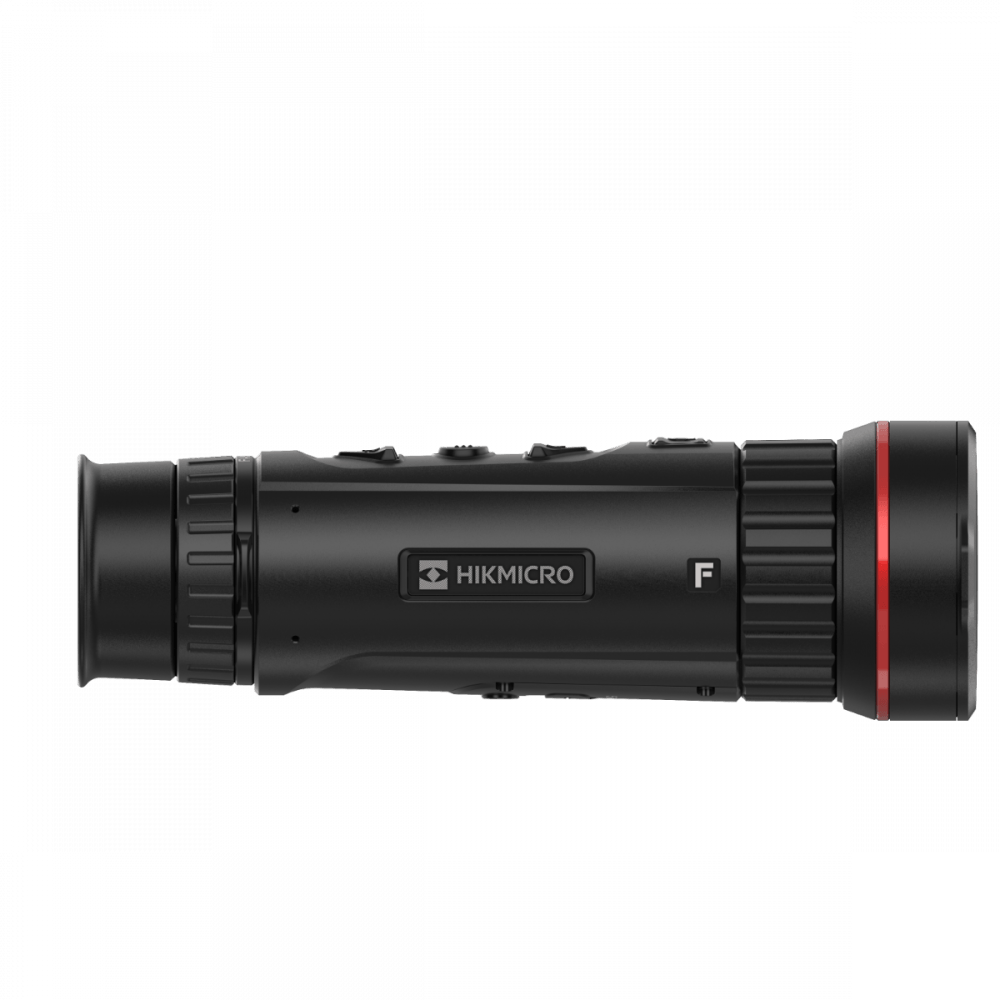

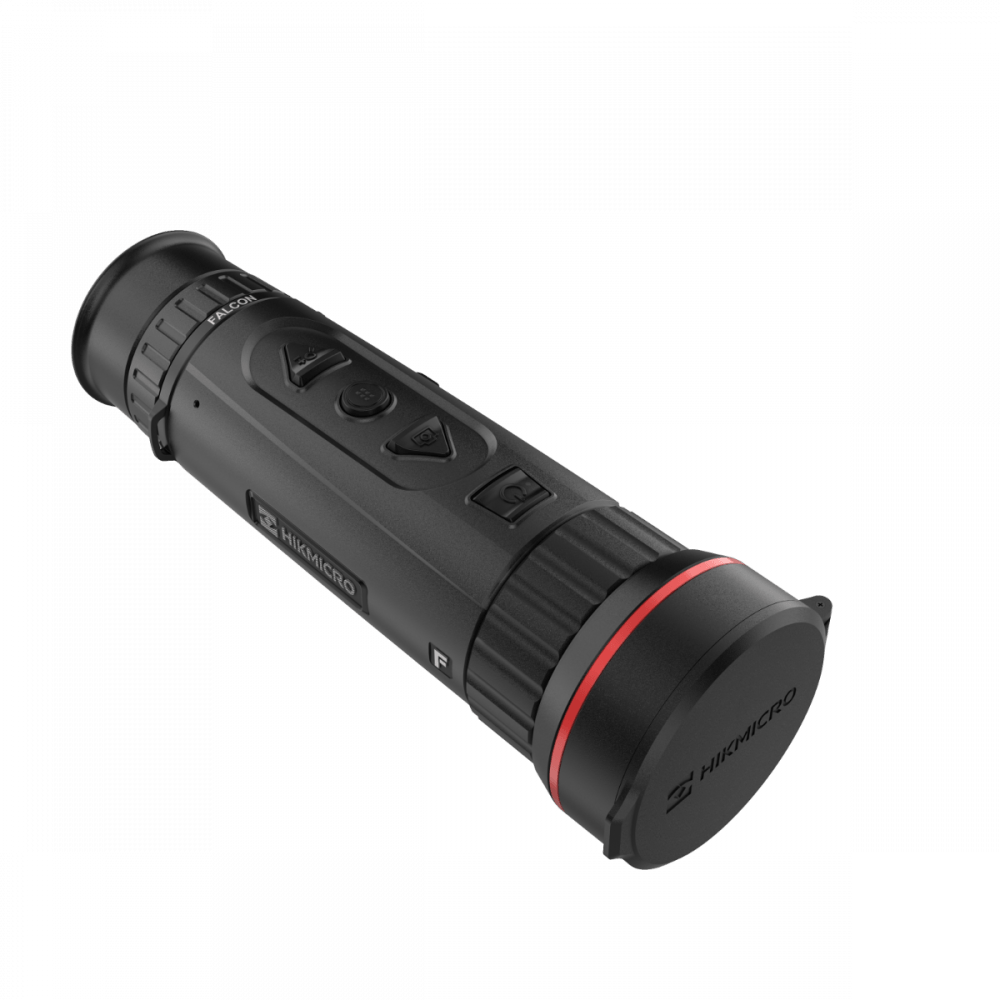

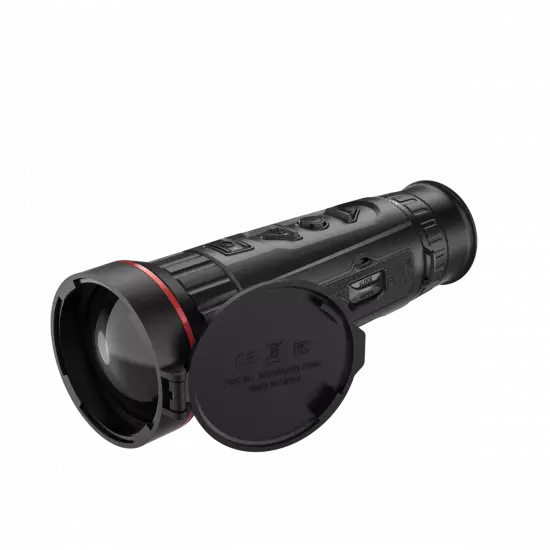

HIKMICRO Falcon FQ50 Thermal Monocular

The HIKMICRO FALCON FQ50 portable thermal monocular camera is equipped with a 640 x 512 pixel infrared sensor and a 1024 x 768 pixel OLED display.

The built-in high sensitivity thermal detector provides you with a clear view even in total darkness.

The monocular is mainly applied to scenarios such as search and rescue, hiking, traveling, and hunting, etc.

Main Features

640 x 512 pixel resolution with 12µm sensor

High sensitivity thermal module NETD<20mK [@25°C, F#=1.0]

Super large aperture F0.9

Replaceable and rechargeable Li-ion battery

Up to 5 hours of continuous operation

Advanced thermal image processing technology: Image Pro

1024 x 768 pixel resolution 0.39-inch OLED display

Thermal Sensor

Sensor: Uncooled focal plane arrays

Resolution: 640 x 512

Frequency: 50Hz

Pixel interval: 12µm

NETD: <20mK (@25°C, F#=1.0)

Focal length: 50mm

Aperture: F0.9

Min. focus distance: 5.0m

Digital zoom: 1x, 2x, 4x, 8x

Optical magnification: 2.6

Field of view: 8.75° x 7° / 15.3m x 12.2m

Detection range: 2600m

Image Display

Monitor: 0.39-inch, OLED, 1024 x 768

Palettes: Black hot, White hot, Red hot, Fusion

Flat field correction: Automatic, Manual, External correction

System

Storage: Built-in memory module (64GB)

Video recording: Yes

Photo capture: Yes

Standby mode: Yes

Power

Power: 5V, 1.75W

Battery type: Replaceable and rechargeable Li-ion battery

Battery life: 5 hours of continuous operation with CVBS and hotspot disabled (@25°C)

General

Operating temperature: -30°C to 55°C, Humidity: 90% or less

Protection rating: IP67

Dimensions: 200.4mm x 78mm x 67.8mm (7.89" x 3.07" x 2.67")

Weight: 636g
