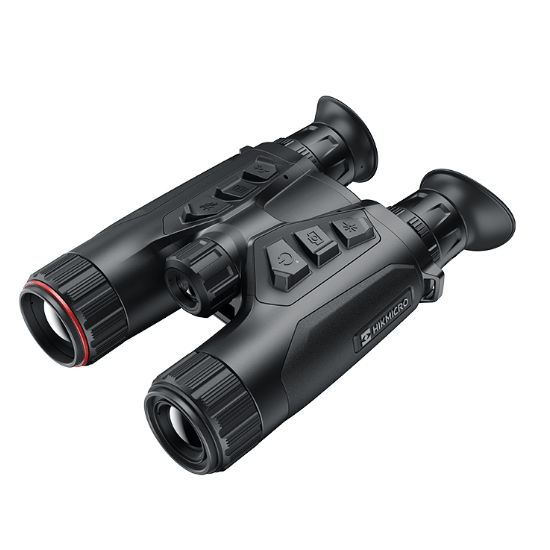

HikMicro Habrok HQ35LN Binoculars

Explore with Clarity: HikMicro Habrok HQ35LN

The HikMicro Habrok HQ35LN Binocular is an advanced tool for anyone needing precise vision in the dark. Whether you are a security professional, a hunter, or a nature enthusiast, this camera allows you to see clearly in total darkness, through fog, smoke, and other visual obstacles.

Main Features:

• High-Resolution Details: Advanced thermal sensor to capture every detail with clarity.
• Extended Range: Identify subjects at a great distance thanks to an impressive range.
• Integrated Screen: HD screen for immediate and detailed viewing of captured images.
• Rangefinder: Measure distances quickly.
• Durable Construction: Designed to withstand harsh outdoor conditions.
• Extended Battery Life: Long-lasting battery for hours of uninterrupted observation.

The HikMicro Habrok HQ35LN Thermal Binocular is more than just a tool; it's a reliable companion that opens up a new world of possibilities for your night observation.

Main Features

640 × 512 resolution with 12 μm thermal sensor

High-sensitivity thermal detector NETD < 20 mK (@25°C, F# = 1.0)

35 mm lens (F1.0) with detection range up to 1800 m

High-resolution CMOS detector 2560 x 1440

0.49 inch OLED screen with 1920 × 1080 resolution

Integrated 940 nm IR lamp

Precision laser rangefinder (±1 m) with distance measurement up to 1000m

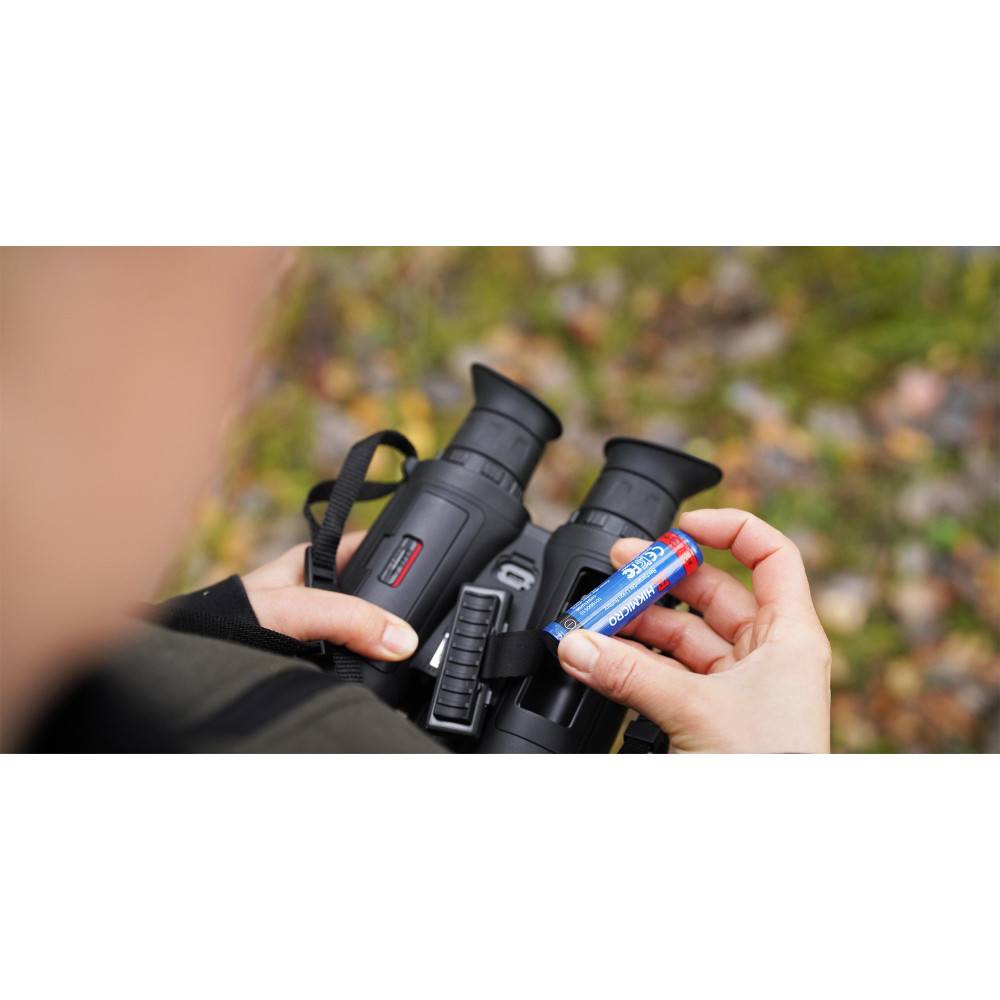

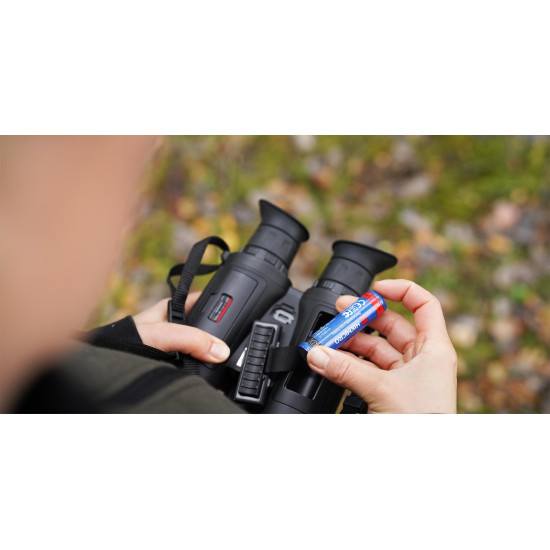

Replaceable and rechargeable Li-ion battery.

Up to 5 hours of continuous operation.

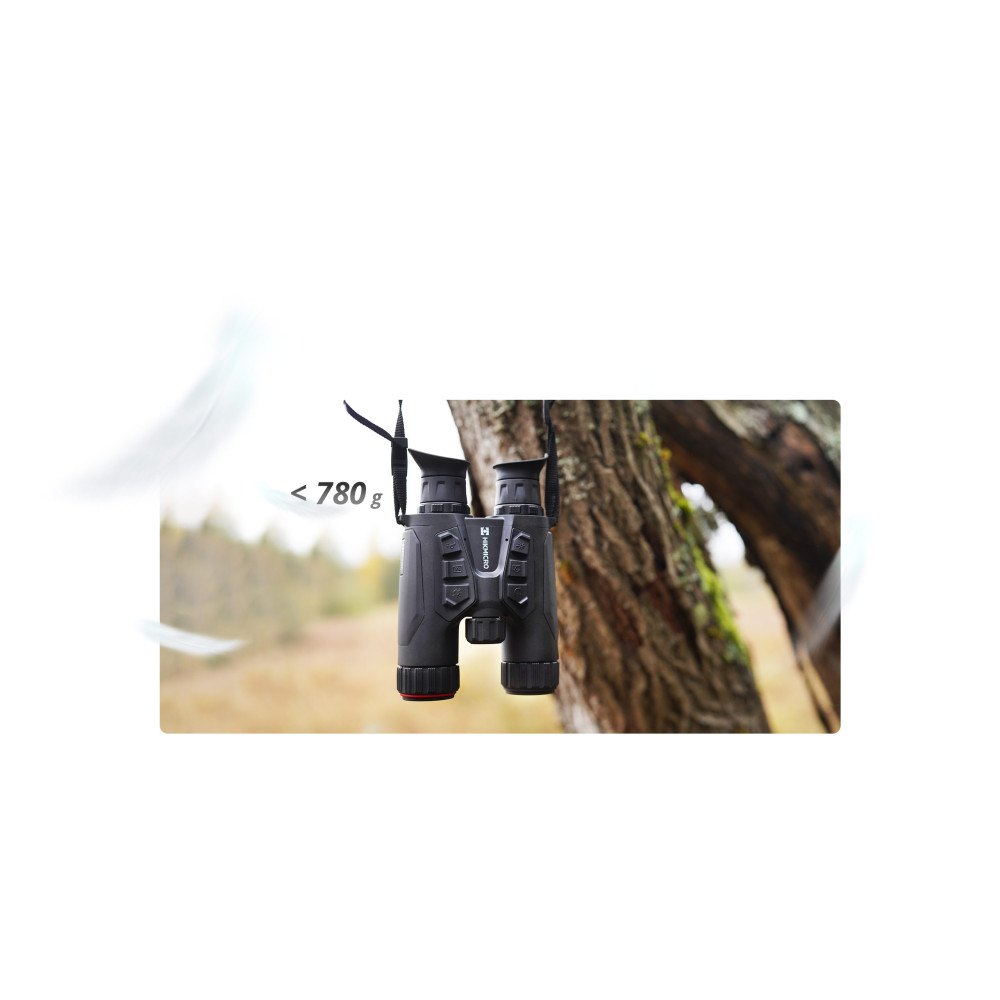

Lightweight at 780 g, with a compact and ergonomic design.

OPTICAL MODULE

IMAGE SENSOR: 1.88” CMOS with progressive scan

MAX. RESOLUTION: 2560 × 1440

FOCAL LENGTH: 31 mm

APERTURE: F1.2

IMAGE ENHANCEMENT: Yes

MIN. FOCUS DISTANCE: 3 m

MIN. ILLUMINATION: 0.001 lux @ (F1.0, AGC On)

MAGNIFICATION: 2.9 - 23.2 (x8 zoom)

FIELD OF VIEW (H × V), DEGREES/M @100 M: 13.9° × 7.8° (H × V)/ 24.4 m × 13.6 m @ 100m

SMART IR: YES

IR ILLUMINATOR WAVELENGTH: 940 nm

NIGHT VISION RANGE: 350 m

THERMAL MODULE

SENSOR: VOx Uncooled Focal Plane Arrays

RESOLUTION: 640 × 512

FRAME RATE: 50 Hz

PIXEL PITCH: 12 μm

SPECTRAL BAND: 8 μm – 14 μm

NETD: < 20 mk (@25°C, F# = 1.0)

LENS (FOCAL LENGTH): 35 mm

APERTURE: F 1.0

DIGITAL ZOOM: 1 ×, 2 ×, 4 ×, 8 ×

MAGNIFICATION: 3.0 - 24.0 (x8 zoom)

DETECTION RANGE: 1800 m

MIN. FOCUS DISTANCE: 3.5 m

FOCUS MODE: Manual

FIELD OF VIEW (H × V), DEGREES/M @100 M: 12.5° × 10.1° (H × V)/ 22.0 m × 17.6 m @ 100m

IMAGE DISPLAY

DISPLAY: 0.49 inch, OLED, 1920 × 1080

PALETTES: Thermal White Hot, Black Hot, Red Hot, Fusion / Optical: Day, Night, Auto

FFC MODE (FLAT FIELD CORRECTION): Auto, Manual, External Correction

EXIT PUPIL: 8 mm

EYE RELIEF: 15 mm

DIOPTER: -5 D to +3 D

BRIGHTNESS ADJUSTMENT: Yes

TONE ADJUSTMENT: Cold, warm

CONTRAST ADJUSTMENT: Yes

PRO IMAGE: Yes

PRO ZOOM: Yes

SYSTEM

INTEGRATED MEMORY: 64 GB

VIDEO RECORDING: Yes

PHOTO RECORDING: Yes

AUDIO RECORDING: Yes

STANDBY MODE: Yes

PIP: Yes

HOTSPOT: Yes

FOLLOW HOT SPOT: Yes

GPS: Yes

DIGITAL MAGNETIC COMPASS: Yes

LOCAL ALBUM: Yes

POWER

BATTERY TYPE: Replaceable and rechargeable Li-ion battery

BATTERY OPERATING TIME: 6 hours of continuous operation with hotspot function disabled (@25°C)

TYPE-C POWER SUPPLY: Yes

GENERAL

PROTECTION LEVEL: IP67

DIMENSION: 138.3 mm × 68.4 mm × 212.4 mm

WEIGHT: 780 g without battery

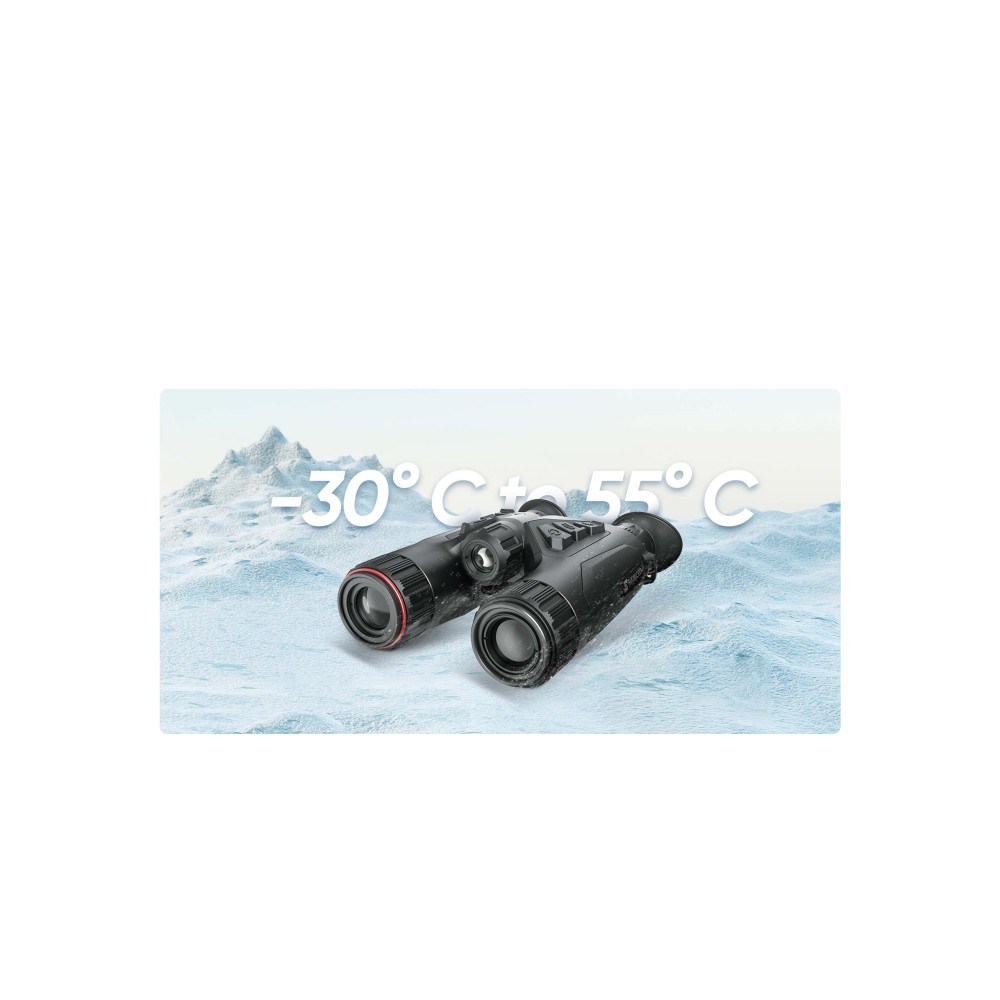

WORKING TEMPERATURE: -30°C to 55°C

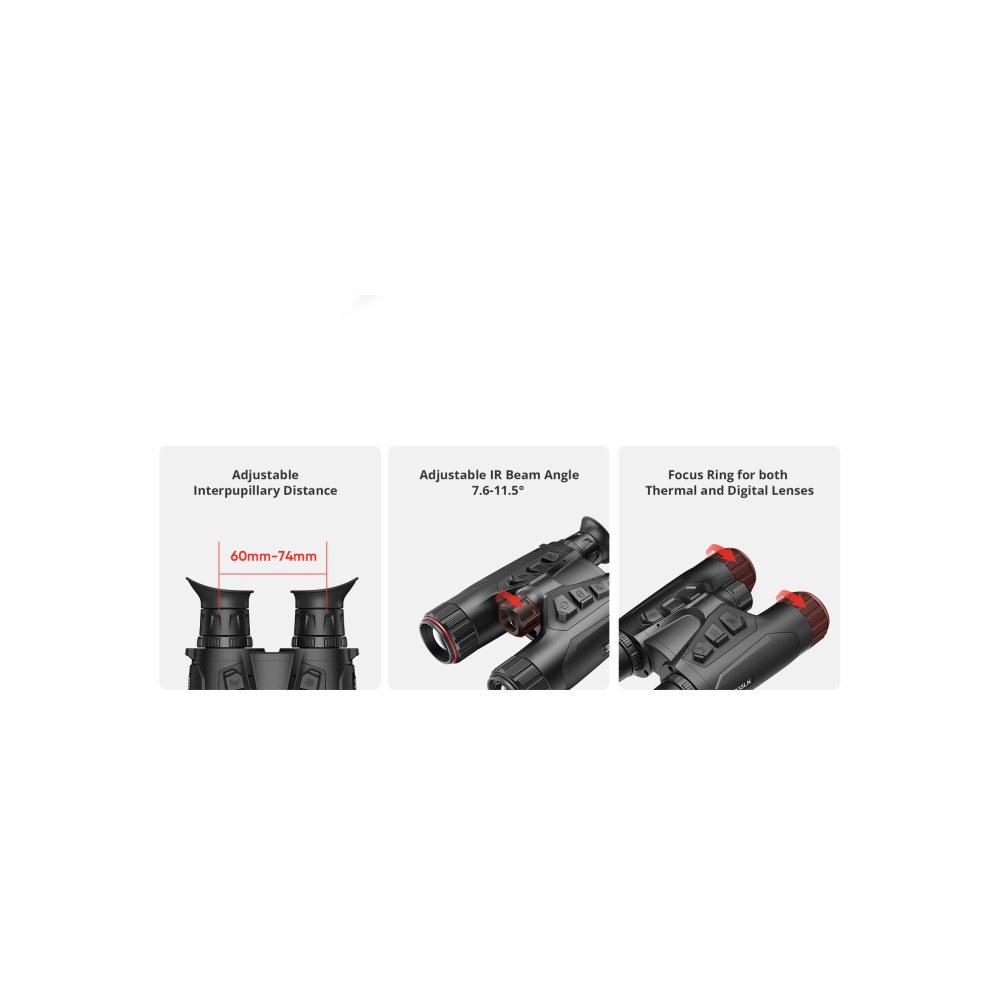

INTERPUPILLARY ADJUSTMENT RANGE: 60 mm to 70 mm

MOUNT ADAPTER: 1/4''-20-UNC

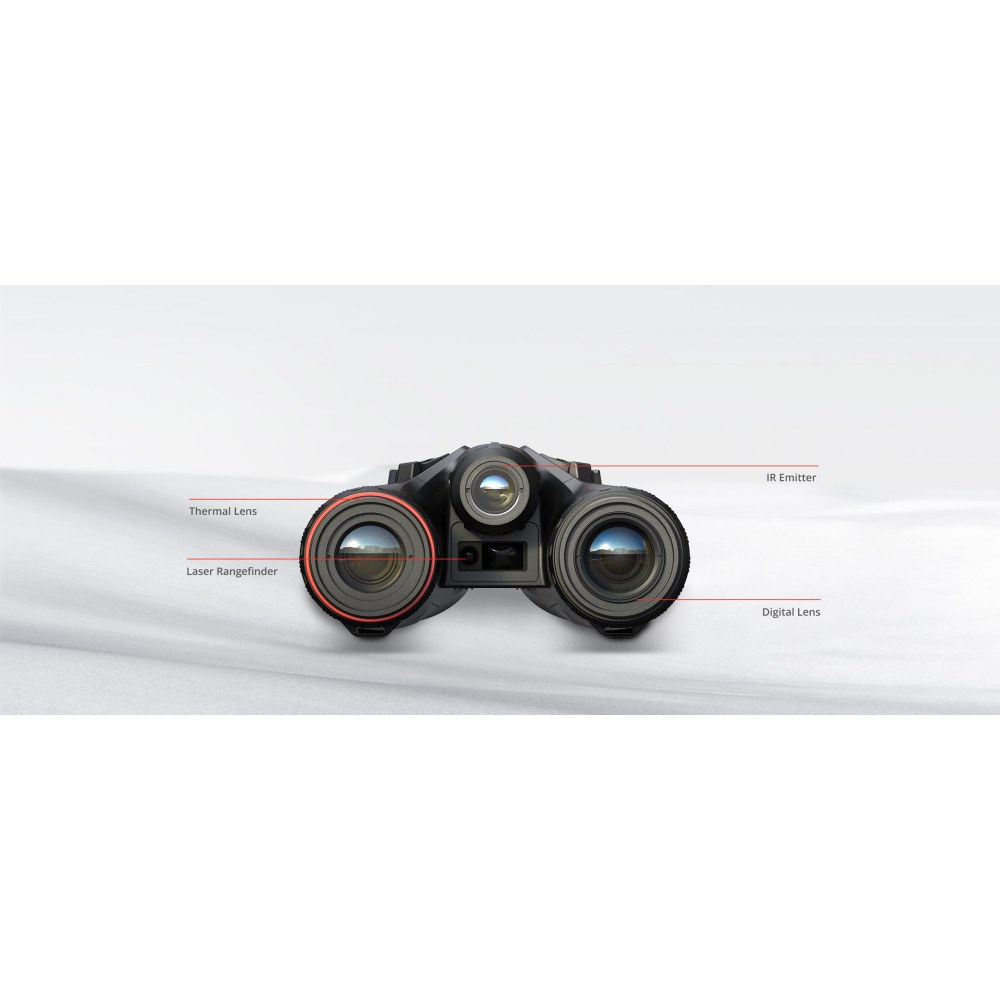

LASER RANGEFINDER

LASER SAFETY CLASS: Class 1

WAVELENGTH: 905 nm

MAX. MEASUREMENT RANGE: 1000 m

MEASUREMENT ACCURACY: ± 1 m

MIN MEASUREMENT DISTANCE: 10 m

INFRARED ILLUMINATOR

EMITTER: LED

IR WAVELENGTH: 940nm

BEAM ANGLE: Adjustable from 7.6 to 11.5°

• 6 to 11.5°
