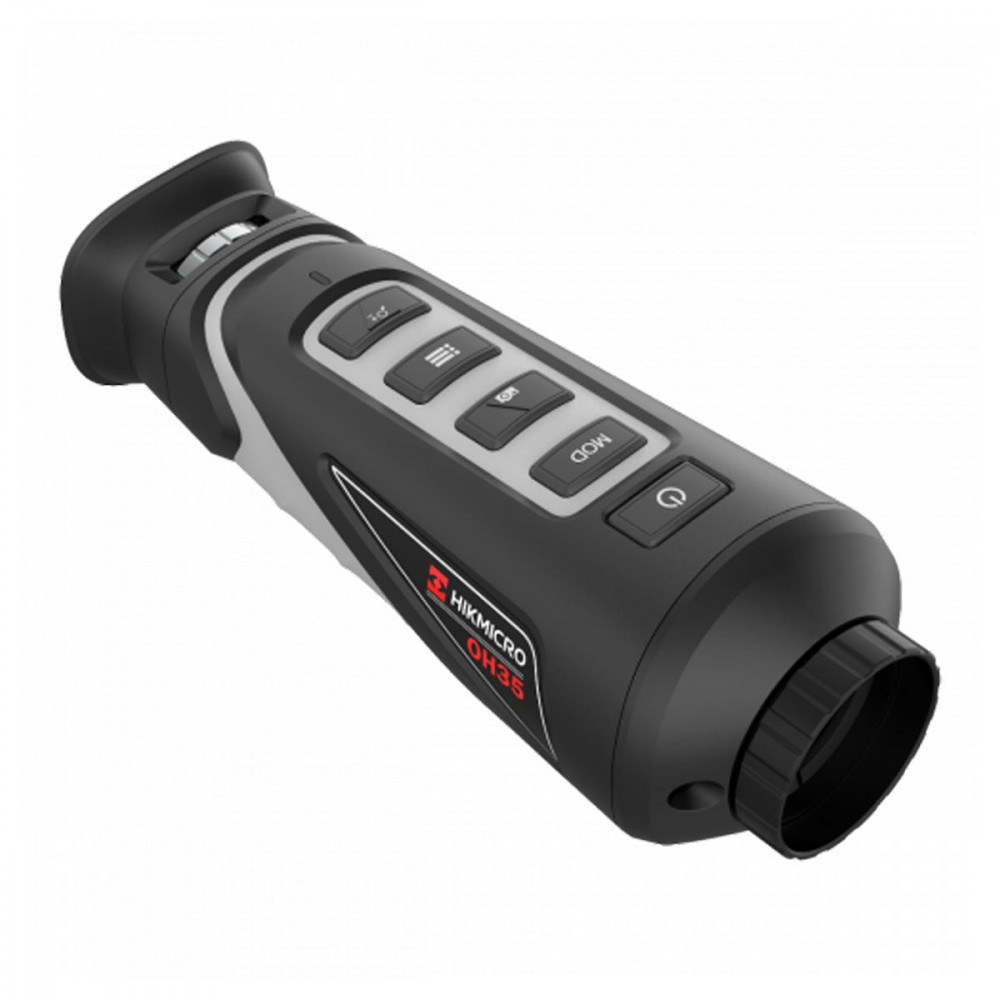

Hik Micro Owl OH35 Thermal Monocular

Hik Micro Owl OH35 Thermal Vision Monocular

Thanks to its OLED screen and 1024 x 768 pixel resolution, the HikMicro Owl OH35 thermal imaging device offers excellent image quality that allows you to miss nothing of the action, day or night! The device is equipped with a sensor offering a NETD below 35 mK. NETD refers to the temperature difference between subjects. It is measured in millikelvins (mK). The lower this indication, the more sensitive the device is. The Owl OH35 monocular detects the slightest heat source up to more than 1.2 km. It offers a digital zoom up to 8x, allowing the identification of the subject.

Main Features

• High sensitivity thermal module with a resolution of 384 x 288 pixels
• NETD < 35 mK (@25 °C, F#=1.1)
• Advanced thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• 0.39-inch OLED screen with a resolution of 1024 × 768 pixels
• Integrated rechargeable lithium battery
• Up to 7 hours of battery life on a single charge
• Wi-Fi hotspot
• Type-C interface
• Comes with: 1 quick start guide, 1 dust cloth, 1 USB cable, 1 protective pouch, 1 wrist strap

Thermal Sensor

• Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frequency: 50 Hz
• Pixel Pitch: 17 μm
• Frequency Band: 8 μm to 14 μm
• NETD: ≤ 35 mk (@25°C), F#=1.0
• Focal Length: 35 mm
• Field of View: 10.66° × 8° (H × V)
• Aperture: F1.0
• Magnification: 2.3 to 18.4

Image Display

• Monitor: 0.39 inch, OLED, 1024 × 768
• Uniformity Correction: Auto, Manual, External Correction

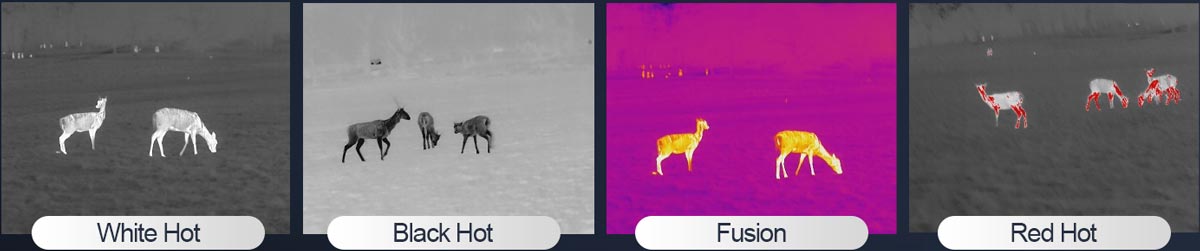

• Palettes: Hot Black, Hot White, Hot Red, Fusion
• Digital Zoom: 1x, 2x, 4x, 8x

Smart Functions

• Hot Tracking: Yes
• Detection Range: 1235 m
• Integrated Memory Module (16 GB)
• Video Recording: Yes
• Photo Capture: Yes
• Wi-Fi: Yes
• Standby Mode: Yes

Power Supply

• Battery Type: Rechargeable Lithium Battery
• Battery Life: 7h of continuous use with Wi-Fi hotspot disabled (@ 25°C) / 5h30 of continuous use with Wi-Fi hotspot enabled (@ 25°C)
• Battery Capacity: Displayed

General

• Mount: UNC 1/4'' -20
• Hardware Interface: USB Type-C
• Power: 5 VDC/2 A
• Consumption: 1.5 W
• Operating Temperature / Humidity: -30°C to 55°C; Humidity: 90% or less
• Protection Index: IP67
• Drop Test Height: 2 m
• Dimensions: 201.6 mm × 73.7 mm × 66 mm
• Weight: 500 g

Comparison of the HikMicro Owl Range
