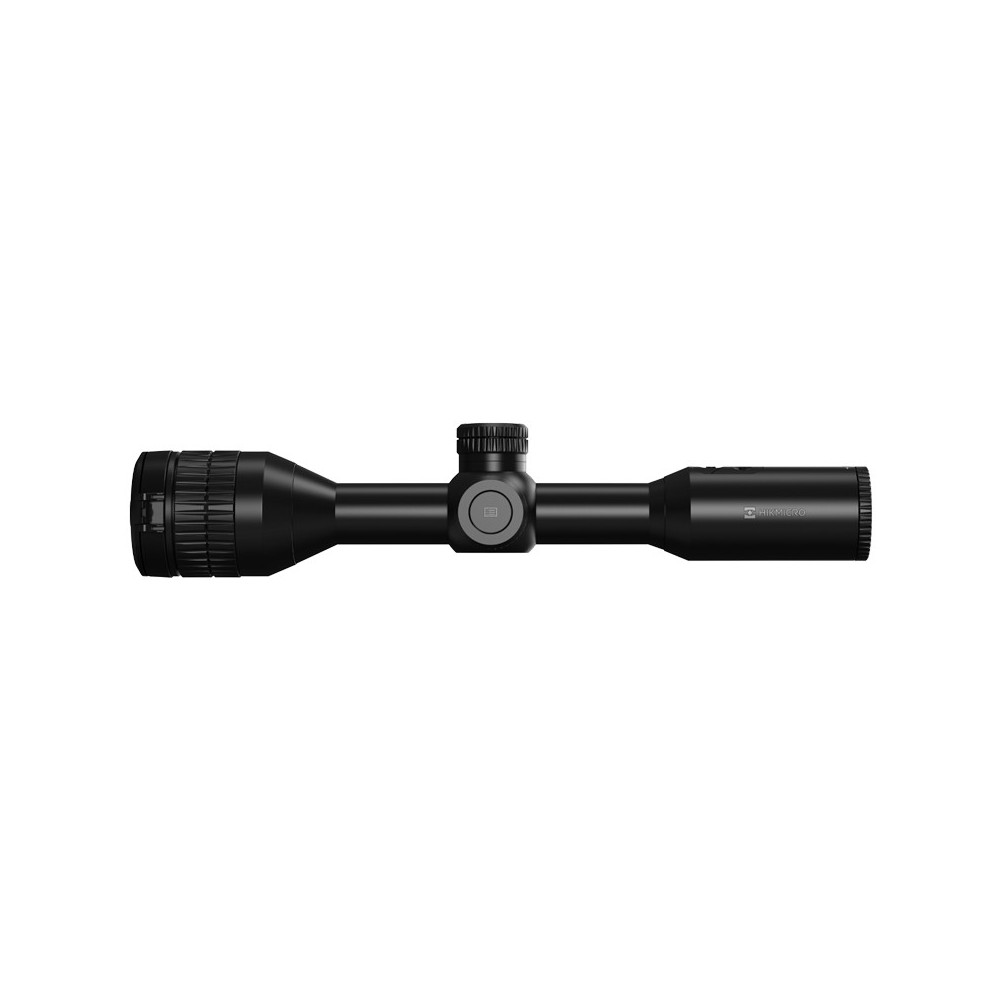

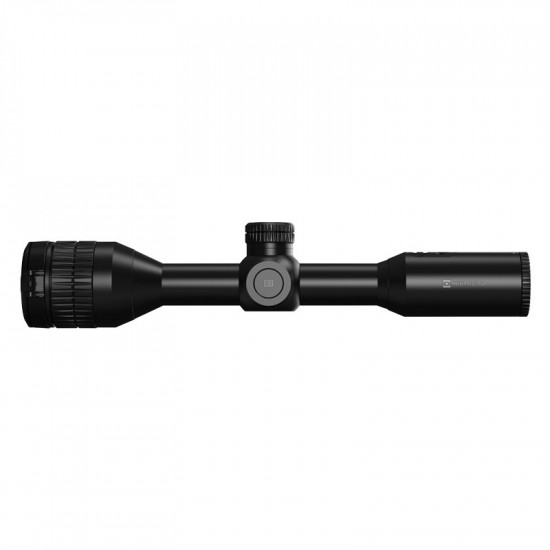

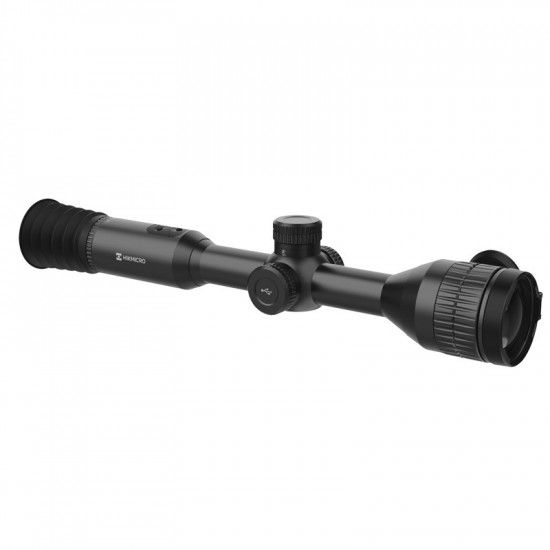

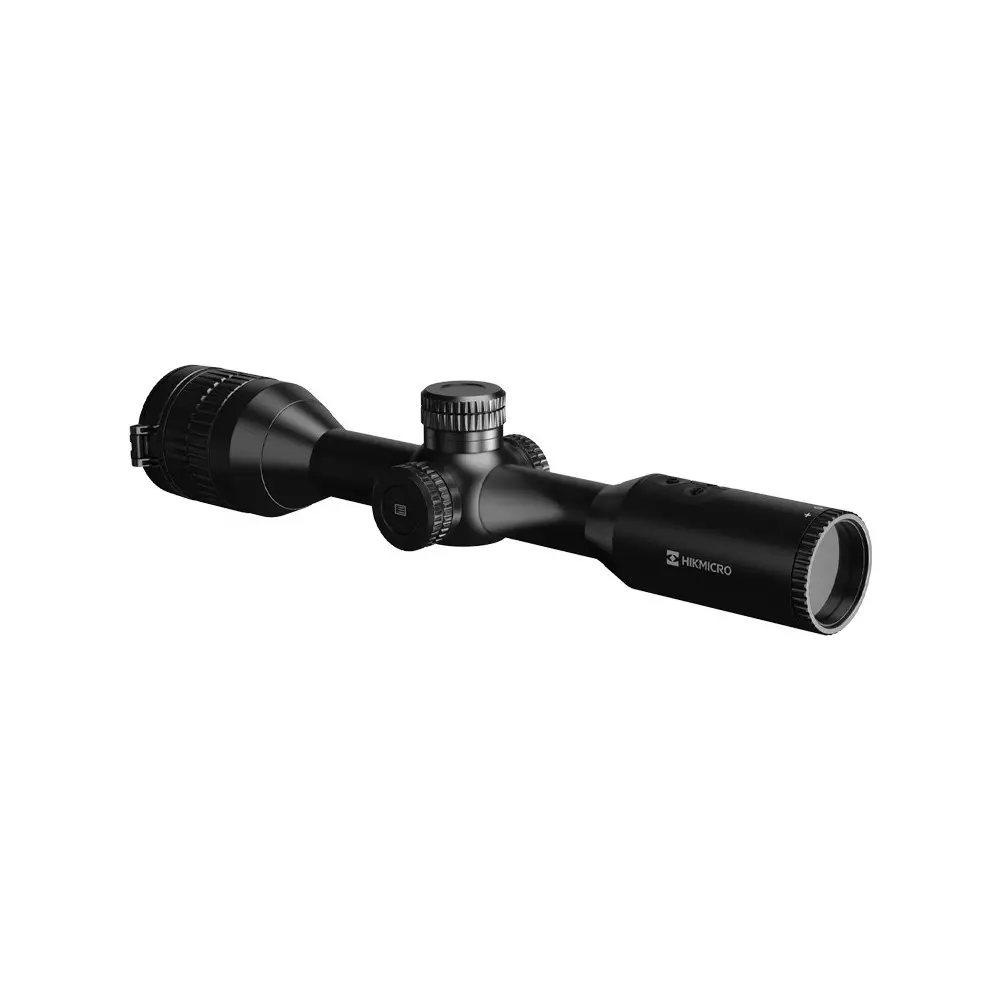

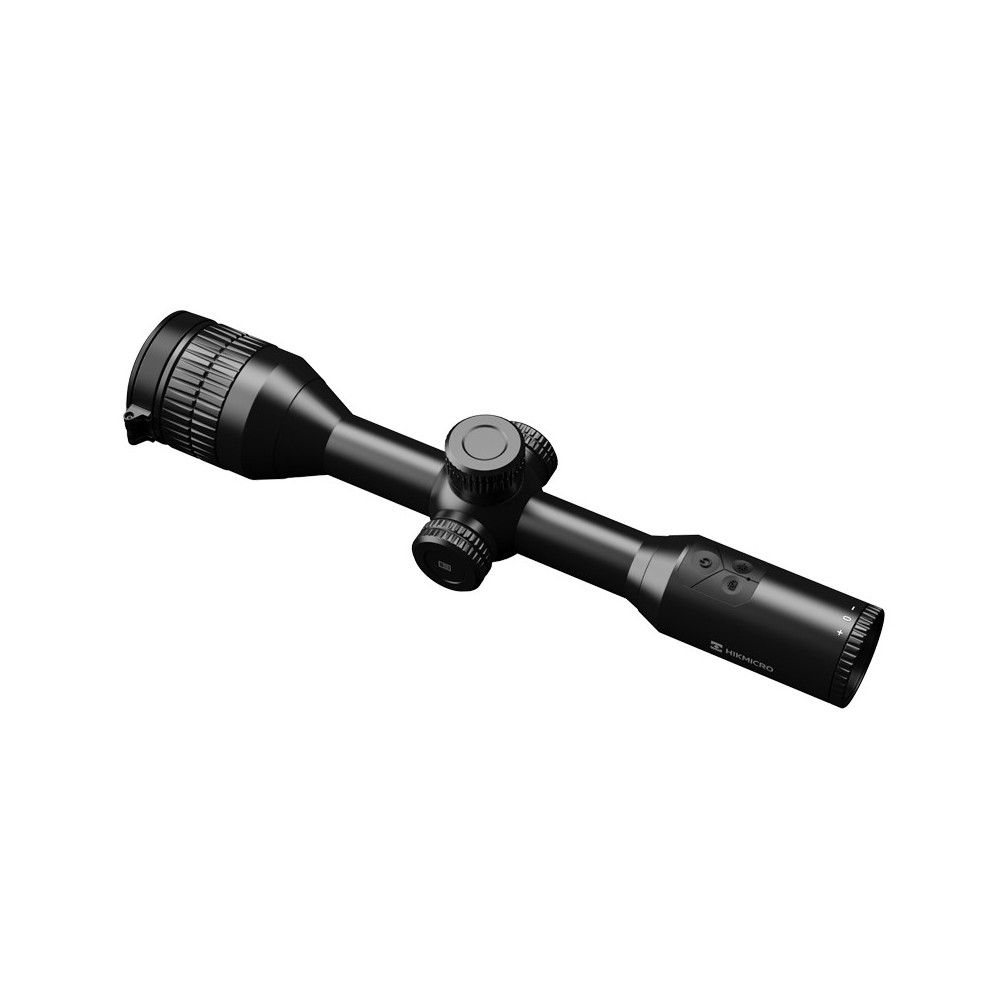

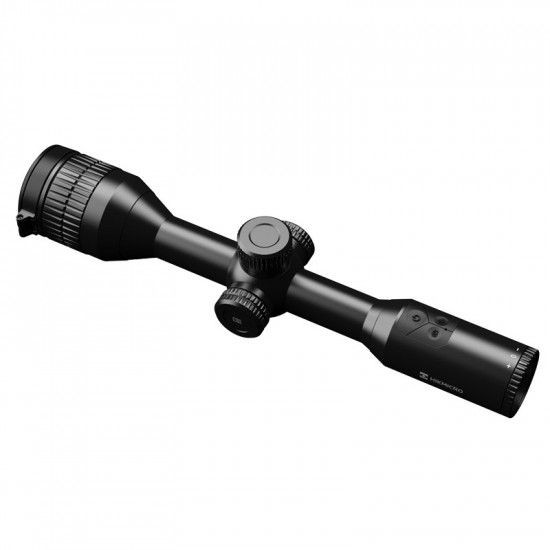

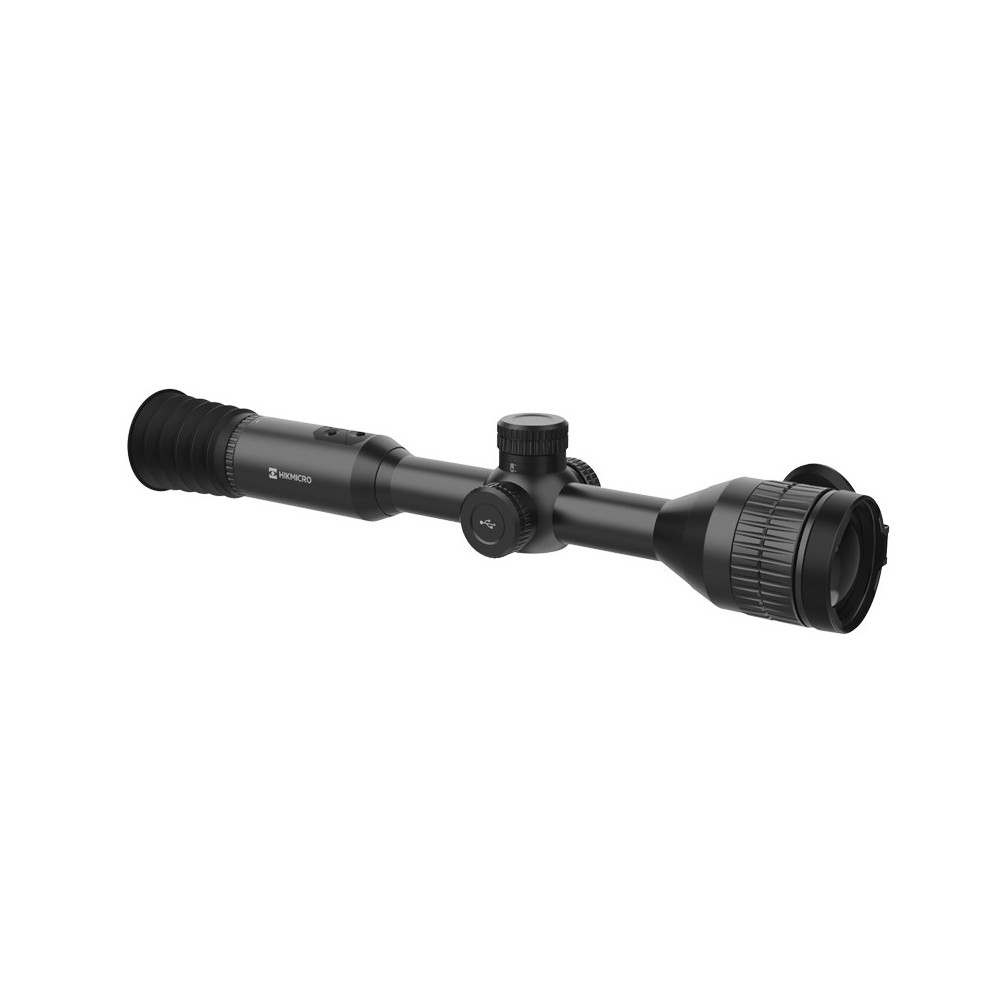

HikMicro Stellar SH50 Thermal Scope

HikMicro Stellar SH50 Thermal Scope

Don't be fooled by its traditional rifle scope appearance, the HikMicro Stellar SH50 optic is a true technological powerhouse! Equipped with the latest advancements in thermal imaging technology, the Stellar SH50 scope provides clear and sharp images in the worst observation conditions (night, snow, fog, ...). Thanks to its thermal sensor with a resolution of 384 x 288 px and its NETD below 35 mK, no heat source will go unnoticed. NETD stands for Noise Equivalent Thermal Difference, representing the smallest detectable temperature difference. In other words, the lower this value, the more sensitive the sensor is. It will therefore detect tiny heat sources.

The HikMicro Stellar SH50 thermal imaging rifle scope features an OLED screen with a resolution of 1024 x 768 px, offering a very high-quality image. It offers four color palettes to adapt to all conditions: hot black, hot white, hot red, and fusion. To allow precise identification of the observed subject, the Stellar SH50 has a digital zoom up to 8x. The HikMicro scope offers a detection range of up to 2,600 meters.

The HikMicro Stellar SH50 thermal scope offers multiple digital functions: photo & video recording with sound, WiFi for instant streaming to a smartphone or tablet, and access to the scope's settings. The temperature tracking feature displays a small square on the scope's screen that autonomously follows the detected heat source. Video recording can be done automatically during a shot thanks to an integrated sensor sensitive to the weapon's recoil. All captured media and settings made on the Stellar SH50 scope are saved on the 64 GB internal memory.

Technical Specifications

Thermal Sensor

• Sensor: Uncooled focal plane array
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Pitch: 12 μm NETD: ≤ 35 mk (@25°C), F#=1.0
• Focal Length: 35 mm
• Field of View: 5.28° × 3.96° (H × V)
• Aperture: F1.0
• Magnification: 3.85x

Image Display

• Monitor: 0.39 inch, OLED, 1024 × 768
• Palettes: Hot black, hot white, hot red, fusion
• Exit Pupil: 5 mm
• Eye Relief: 60 mm
• Detection Range: Max. 2600 m
• Recognition Distance: 650 m
• Diopter Adjustment: -5 D to 5 D
• FFC (sensor cleaning): Auto, manual, external correction

System

• Digital Zoom: 1x, 2x, 4x, 8x
• Reticle: Yes
• Temperature Tracking: Yes
• Standby Mode: Yes
• Video Recording: Yes
• Sound Recording: Yes
• Instant Recoil Recording: Yes
• Photo Capture: Yes
• WiFi Mode: Yes
• PIP: Yes
• DPC: Yes
• Max Recoil: 1,000g
• Storage: Integrated EMMC (64GB)

Power Supply

• Battery Type: x 2 Lithium Battery (internal) and one CR123A backup battery (external)
• Battery Life: 15 h (without WiFi)
• Overvoltage Protection: Yes
• Integrated Charger: Yes
• Type C Power Supply: 5 V DC/2 A, USB-C interface, QC3.0 support
• Operating Temperature: -30°C to 55°C
• Protection Rating: IP67
• Dimensions: 420 mm × 78.1 mm × 82 mm
• Tube Diameter: 30 mm
• Weight: 970 g
