HikMicro Stellar SQ35 Thermal Scope

HikMicro Stellar SQ35 Thermal Scope

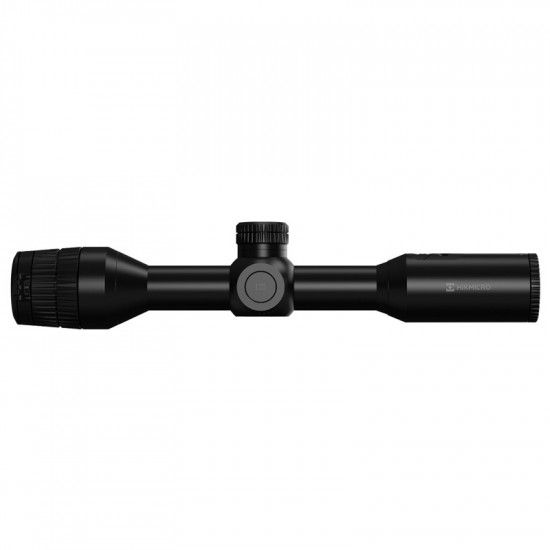

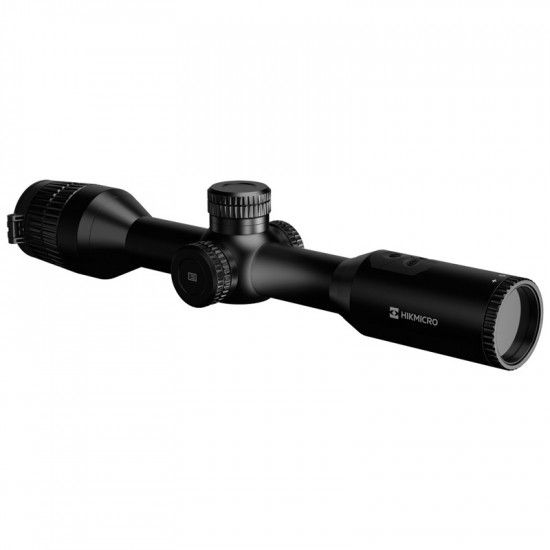

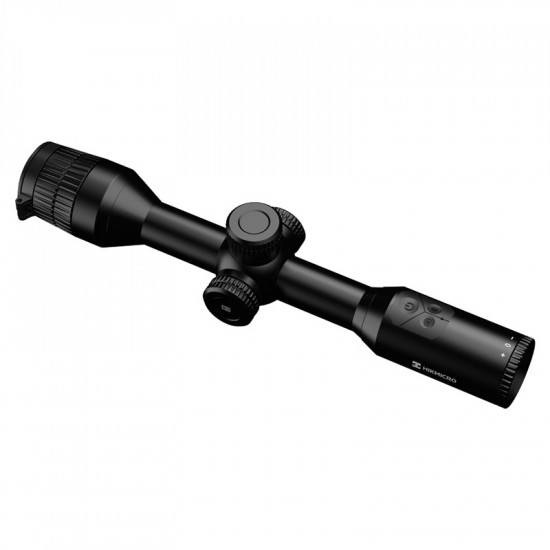

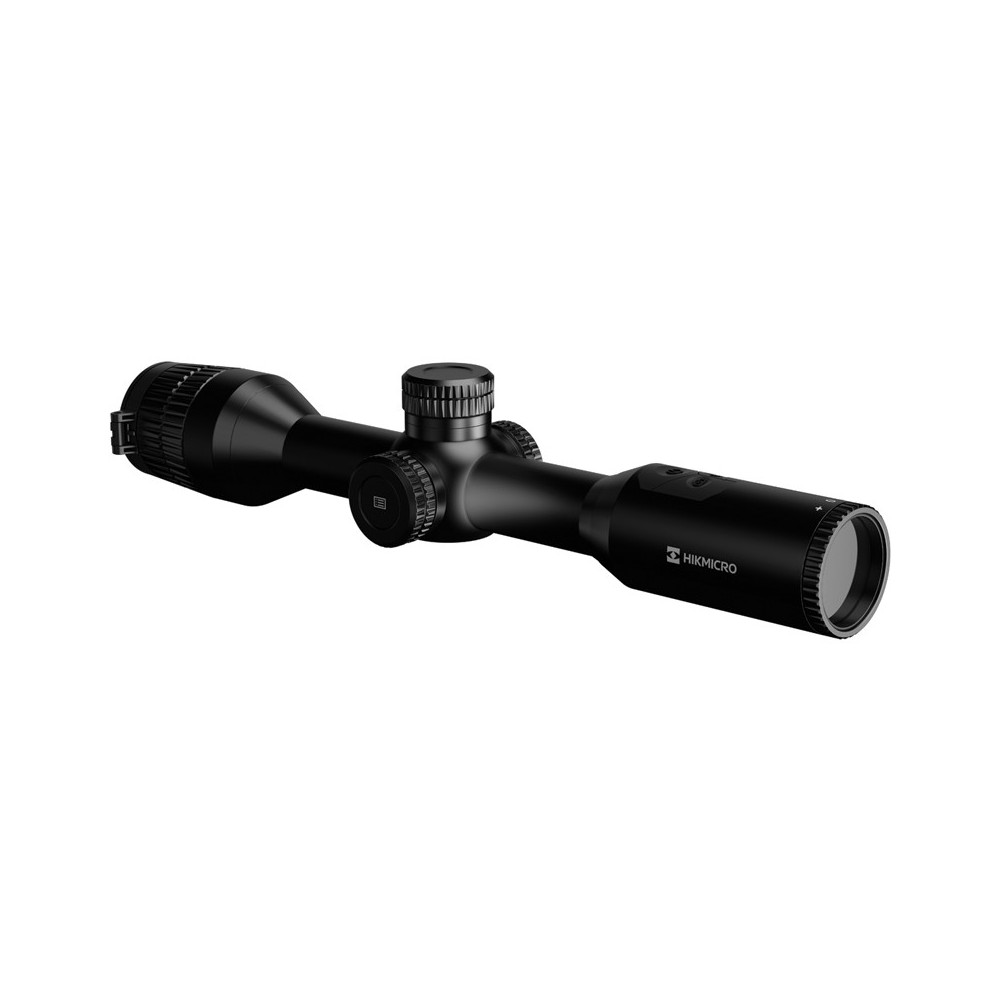

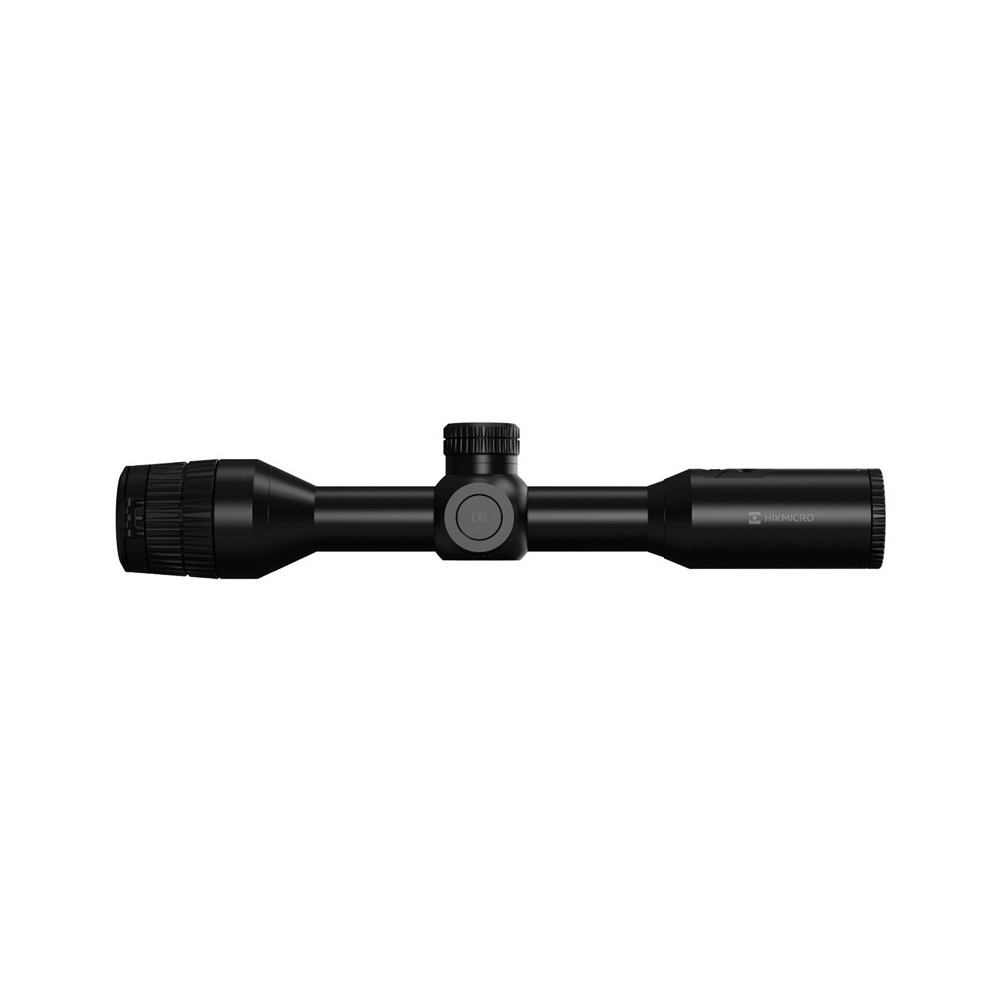

Don't be fooled by its traditional rifle scope appearance; the HikMicro Stellar SQ35 optic is packed with technology! Equipped with the latest advancements in thermal imaging, the Stellar SQ35 scope provides clear and sharp images in the worst observation conditions (night, snow, fog, etc.). Thanks to its thermal sensor with a resolution of 640 x 512 px and a NETD below 35 mK, no heat source will go unnoticed. NETD stands for Noise Equivalent Thermal Difference, representing the smallest detectable temperature difference. In other words, the lower this value, the more sensitive the sensor. It will therefore detect tiny heat sources.

The HikMicro Stellar SQ35 thermal imaging rifle scope features an OLED screen with a resolution of 1024 x 768 px, offering a very high-quality image. It offers four color palettes to adapt to all conditions: hot black, hot white, hot red, and fusion. To allow precise identification of the observed subject, the Stellar SQ35 has a digital zoom up to 8x. The HikMicro scope offers a detection range of up to 1800 meters.

The HikMicro Stellar SQ35 thermal scope offers multiple digital functions: photo & video recording with sound, WiFi for instant streaming to a smartphone or tablet, or accessing the scope's settings. The temperature tracking feature allows displaying on the scope's screen a small square that autonomously follows the detected heat source. Video recording can be automatically triggered during a shot thanks to an integrated sensor sensitive to the weapon's recoil. All captured media and settings made on the Stellar SQ35 scope are saved on the 64 GB internal memory.

Technical Specifications

Thermal Sensor

• Sensor: Uncooled focal plane array
• Resolution: 640 x 512
• Frame rate: 50 Hz
• Pixel Pitch: 12 μm
• NETD: ≤ 35 mK (@25°C), F#=1.0
• Focal length: 35 mm
• Field of view: 12.52° × 10.03° (H × V)
• Aperture: F1.0
• Magnification: 1.62x

Image Display

• Monitor: 0.39 inch, OLED, 1024 × 768
• Palettes: Hot black, hot white, hot red, fusion
• Exit pupil: 5 mm
• Eye relief: 60 mm
• Detection range: Max. 1800 m
• Recognition distance: 450 m
• Diopter adjustment: -5 D to 5 D
• FFC (sensor cleaning): Auto, manual, external correction

System

• Digital zoom: 1x, 2x, 4x, 8x
• Reticle: Yes
• Temperature tracking: Yes
• Standby mode: Yes
• Video recording: Yes
• Sound recording: Yes
• Instant recoil recording: Yes
• Photo capture: Yes
• WiFi mode: Yes
• PIP: Yes
• DPC: Yes
• Max recoil: 1000g
• Storage: Integrated EMMC (64GB)

Power Supply

• Battery type: x 2

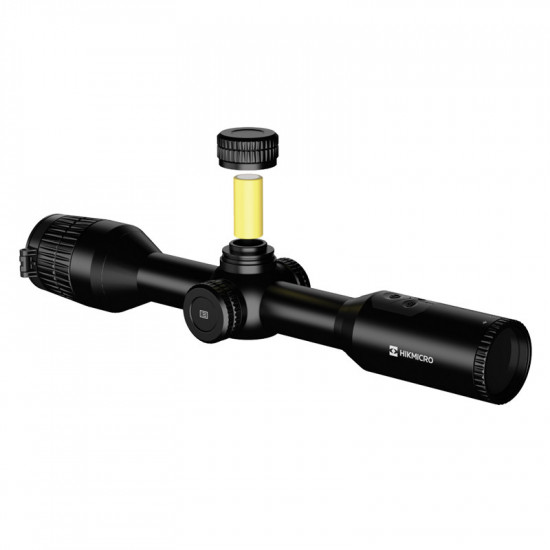

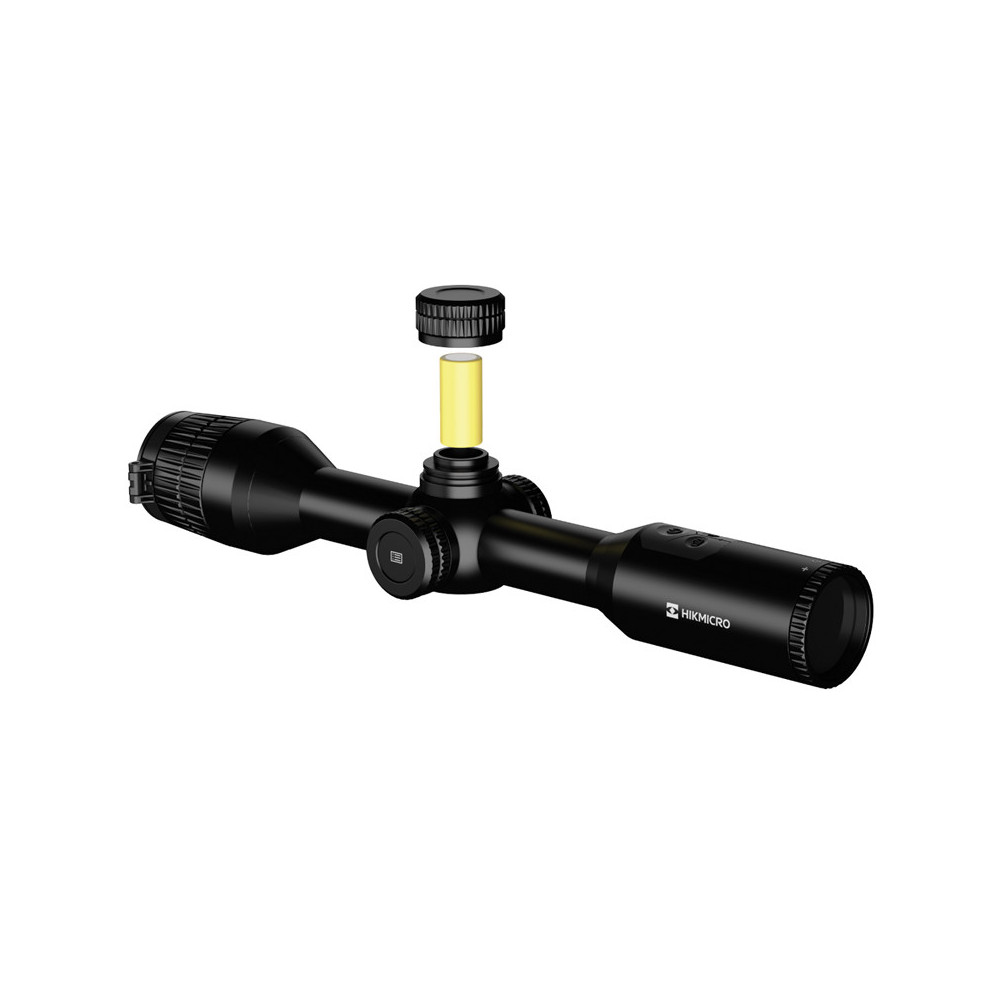

• Internal lithium battery and external CR123A backup battery
• Battery life: 13 h (without WiFi)
• Overvoltage protection: Yes
• Integrated charger: Yes
• Type C power adapter: 5 V DC/2 A, USB-C interface, QC3.0 support
• Operating temperature: -30°C to 55°C
• Protection rating: IP67
• Dimensions: 407 mm × 78.1 mm × 75.9 mm
• Tube diameter: 30 mm
• Weight: 890 g
