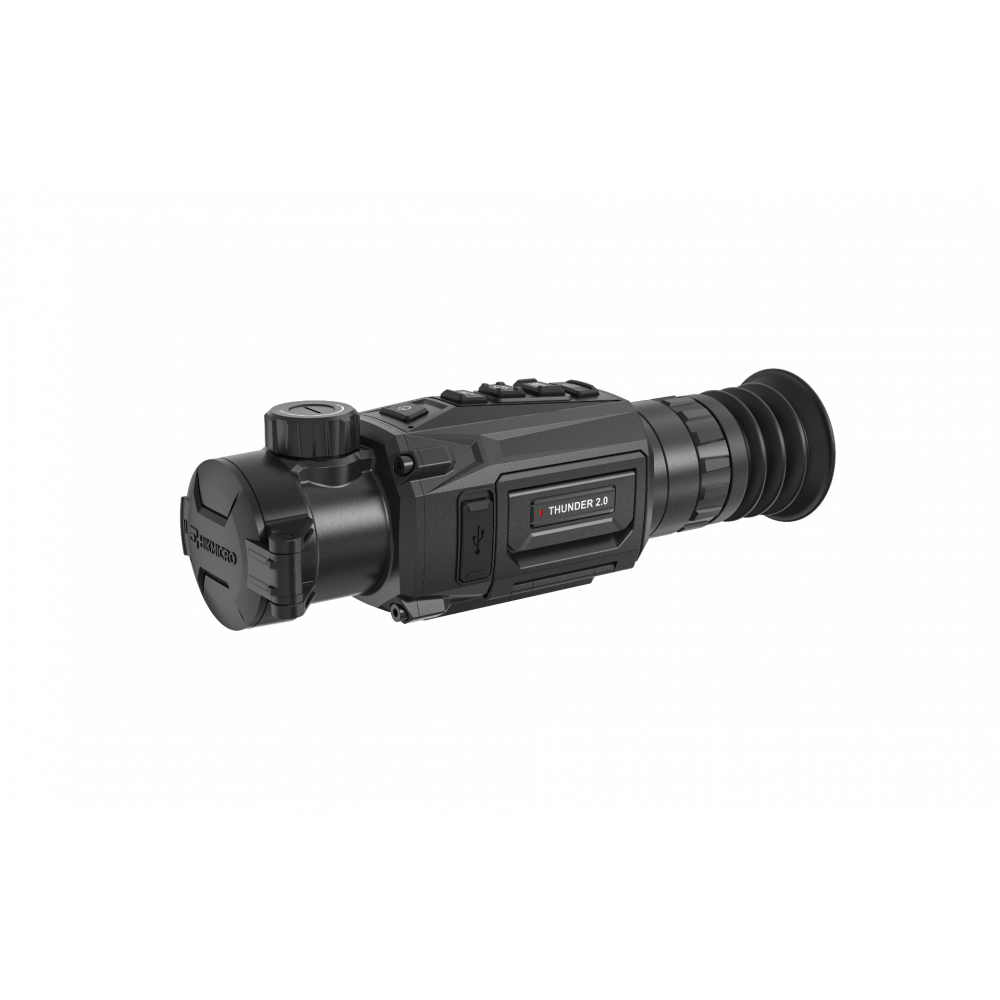

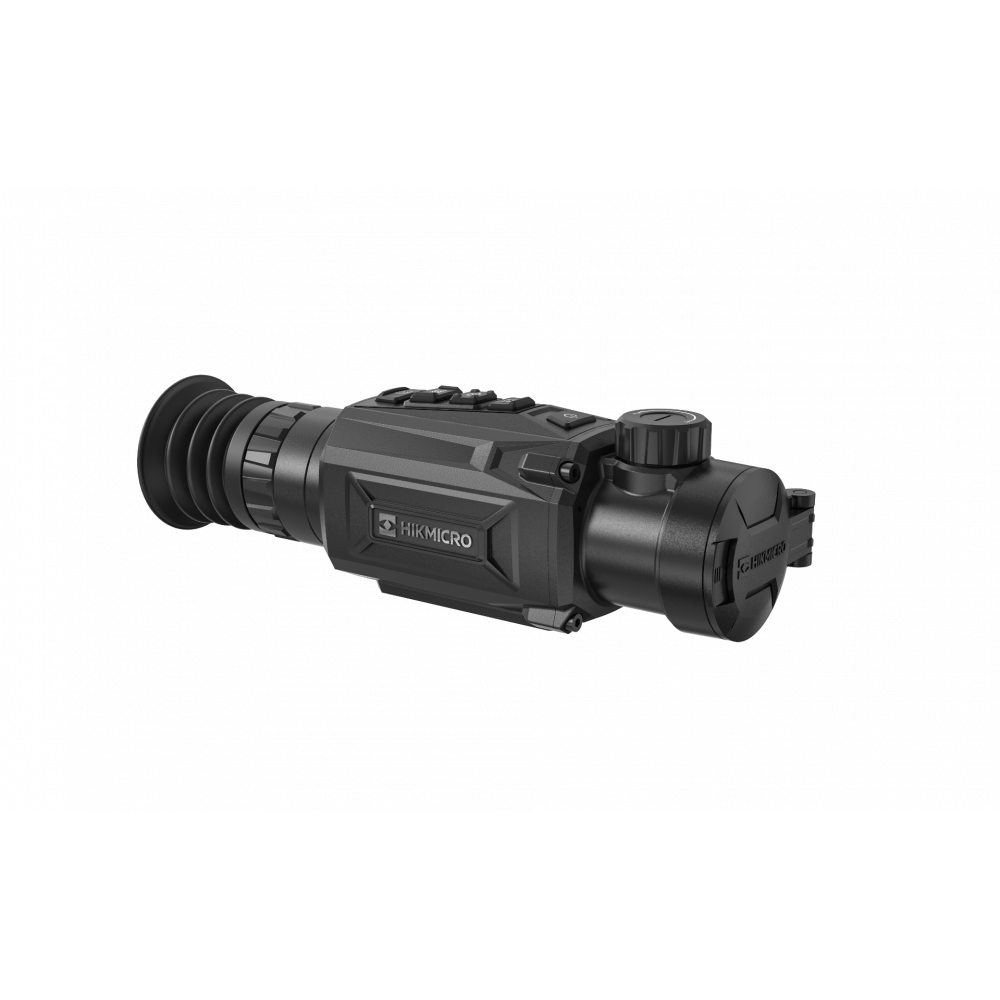

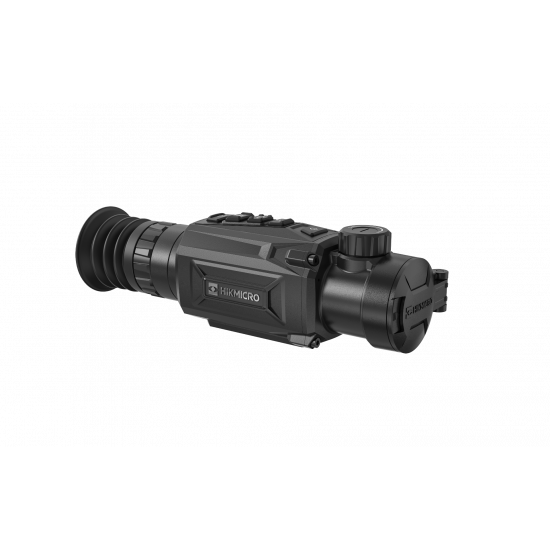

Hikmicro Thunder TH35 2.0 Thermal Imaging Rifle Scope

HIKMICRO THUNDER TH35C 2.0 THERMAL IMAGING SHOOTING MODULE (CLIP-ON)

The Hikmicro Thunder TH35 2.0 thermal scope is an advanced device used for thermal vision in various applications, including hunting, wildlife observation, security, and surveillance. Here are the main features of the Hikmicro Thunder TH35 2.0 thermal scope:

Thermal resolution: The TH35 2.0 thermal scope is equipped with a high-quality thermal sensor with a resolution of 384x288 pixels, allowing precise detection of objects and animals using heat differences.

Quality lens: It has a 35 mm lens with a fast F1.0 aperture, ensuring efficient thermal transmission and clear thermal images with good precision and sharp details.

Digital zoom: The thermal scope offers a digital zoom of up to 8x, allowing the user to enlarge and view thermal objects at different distances with a good level of detail.

High-resolution screen: It is equipped with a high-resolution color LCD screen of 1280x960 pixels, offering clear visualization of thermal images and precise details.

Extended detection range: The TH35 2.0 thermal scope has a detection range of up to 1,800 meters, allowing long-distance observation and precise detection of thermal objects, even in total darkness.

Customizable color palette: It offers a selection of color palettes, including Ironbow, Rainbow, Whitehot, Blackhot, and others, allowing the user to choose the one that best suits their preferences and observation environment.

Video recording and image capture: The thermal scope has a video recording function and also allows taking thermal images to document observations or share them with others.

Wi-Fi connectivity: It is equipped with integrated Wi-Fi connectivity, allowing the thermal scope to connect to a smartphone or tablet via a dedicated application. This enables real-time viewing of thermal images on the mobile device and sharing recordings with other users.

Long battery life: The thermal scope is powered by a built-in rechargeable battery, offering several hours of continuous use. It can also be powered via an external power source if necessary.

Rugged construction: The Thunder TH35 2.0 thermal scope is designed to be durable and resistant to outdoor conditions. It is waterproof, shockproof, and can withstand shocks and vibrations, ensuring reliable performance even in harsh environments.

The Hikmicro Thunder TH35 2.0 thermal scope offers advanced features for precise thermal observation and long-distance object detection. It is widely used by hunters, outdoor enthusiasts, security professionals, and surveillance services to enhance their night vision and ability to detect objects and animals in darkness or through visual obstacles.

Main features

Resolution of 384 × 288 with a 12 μm sensor

High sensitivity thermal module NETD≤ 20 mK (25°C, F# = 1.0)

0.39-inch OLED screen with a resolution of 1024 × 768

Supports brightness and image tone adjustment

Up to 6.5 hours of continuous operation

Replaceable and rechargeable Li-ion battery

Supports audio recording and recoil-activated recording

High shock resistance up to 1000 g/0.4 ms

Observation distance up to 1800 m

Thermal Sensor

Sensor: Uncooled focal plane array

Resolution: 384 × 288

Frame rate: 50 Hz

Pixel Pitch: 12 μm

NETD: less than 20 mk (@25°C), F#=1.0

Focal length: 35 mm

Focus knob

Detection range: 1800m

Minimum focus distance: 2m

Field of view: 7.53° × 5.65° (H × V)

Aperture: F1.0

Magnification: 2.14

Digital zoom: 1x, 2x, 4x, 8x

Image display

Display: 1024x768, 0.39 inch, OLED

Palettes: Black hot, white hot, red hot, fusion

FFC mode (flat field correction): Auto, manual, external correction

Exit pupil: 6 mm

Eye relief: 45 mm

Diopter (range): -5D to 5D

Brightness adjustment: Yes

Tone adjustment: Cold, warm

System

Hot spot: Yes

Distance measurement: Yes

Standby mode: Yes

Video recording: Yes

Photo capture: Yes

Reticle: Yes

PIP: Yes

DPC: Yes

Storage: Built-in EMMC (16GB)

Max recoil: 1000g/0.4ms

Power

Battery type: Replaceable and rechargeable Li-ion battery

Battery operating time: ≤6.5h (25°C, with hotspot off)

Type-C power supply: 5 VDC, 2 A. Supports external power supply

General

Operating temperature: -30°C to 55°C

Protection rating: IP67

Dimensions: 221.14 mm × 67.4 mm × 68.04 mm

Weight: 515g without battery
